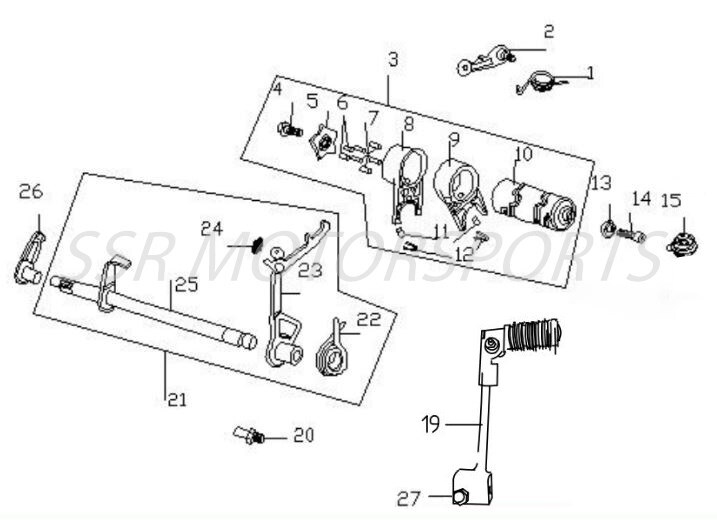

2025 SSR SR110SE - Gear Shift Drum Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01145-09-00 | GEAR SETTING ARM NOTE: BOLT ATTACHED+ ADD | $8.80 | 1 |
| 2 | A01147-09-00 | TORSION SETTING PLATE SPRING+ ADD | $2.00 | 1 |
| 3 | A01141-09-00 | GEARSHIFT DRUM ASSY+ ADD | $68.30 | 1 |
| 4 | A00002-19-05 | FLANGE BOLT M6X12 (BLACK)+ ADD | $2.00 | 1 |
| 5 | A01144-09-00 | GEAR PIN PLATE+ ADD | $6.10 | 1 |
| 6&7 | A01143-09-00 | PIN M4x13+ ADD | $2.00 | 5 |
| 8&9 | A01148-09-00 | SHIFT FORK+ ADD | $12.30 | 2 |
| 10 | A01142-09-00 | GEARSHIFT DRUM+ ADD | $45.50 | 1 |
| 11 | A01149-09-00 | STRIKING PIN+ ADD | $2.00 | 2 |
| 12 | A01150-09-00 | CLIP+ ADD | $2.00 | 2 |
| 13 | A00011-21-01 | WASHER M6X18X1.5+ ADD | $2.00 | 1 |
| 14 | A00006-20-01 | PHILLIPS BOLT M6X12+ ADD | $2.00 | 1 |
| 15 | A01151-09-00 | RUBBER PLUG+ ADD | $2.60 | 1 |
| 16 | A00002-19-06 | BOLT M6x22+ ADD | $2.00 | 1 |
| 19 | A00567-05-00 | GEARSHIFT LEVER ASSY OAL: 130MM/30MM+ ADD | $28.00 | 1 |
| 20 | A01140-09-00 | RETURN SPRING STOPPER+ ADD | $2.60 | 1 |
| 21 | A02894-09-00 | GEARSHIFT SHAFT ASSY+ ADD | $68.30 | 1 |
| 22 | A01138-09-00 | GEARSHIFT SPRING+ ADD | $2.50 | 1 |
| 23 | A02896-09-00 | GEAR SHIFT ARM ASSY+ ADD | $28.00 | 1 |
| 24 | A01137-09-00 | SHIFTER ARM SPRING+ ADD | $2.00 | 1 |
| 25 | A02895-09-00 | GEARSHIFT SHAFT+ ADD | $40.30 | 1 |
| 26 | A03333-09-00 | SEMI CLUTCH ARM+ ADD | $19.30 | 1 |
| 27 | A00022-19-03 | BOLT M6x30+ ADD | $2.00 | 1 |
