Kickstarter
All 2025 SSR SR110SE schematics

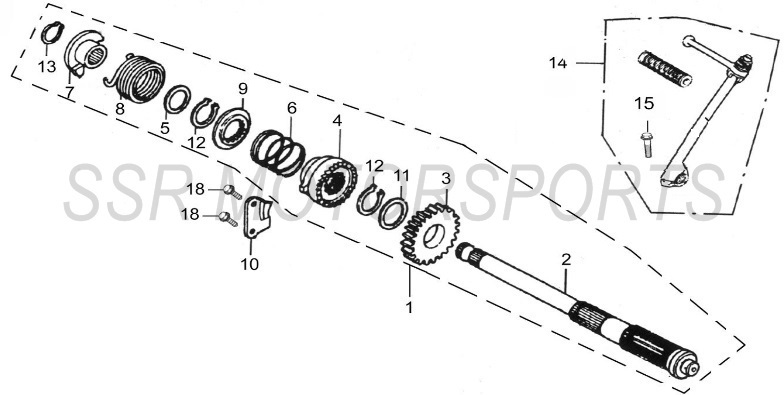

2025 SSR SR110SE - Kickstarter Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02363-09-00 | KICK STARTER SHAFT ASSY+ ADD | $59.50 | 1 |
| 2 | A02364-09-00 | KICK STARTER SHAFT+ ADD | $19.30 | 1 |
| 3 | A02365-09-00 | KICK START GEAR+ ADD | $21.00 | 1 |
| 4 | A02366-09-00 | RATCHET+ ADD | $14.00 | 1 |
| 5 | A02367-09-00 | WASHER I+ ADD | $2.00 | 1 |
| 6 | A02368-09-00 | SPRING+ ADD | $2.50 | 1 |
| 7 | A02369-09-00 | SPRING SEAT+ ADD | $4.40 | 1 |
| 8 | A02370-09-00 | RETURN SPRING+ ADD | $2.60 | 1 |
| 9 | A02371-09-00 | SPRING SEAT+ ADD | $2.60 | 1 |
| 10 | A02372-09-00 | RETAINER PLATE+ ADD | $4.40 | 1 |
| 11 | A02373-09-00 | WASHER II+ ADD | $2.00 | 1 |
| 12 | A01130-09-00 | CIRCLIP 18.5+ ADD | $2.00 | 2 |
| 13 | A01131-09-00 | CIRCLIP 15.5+ ADD | $2.00 | 1 |
| 14 | A00321-05-00 | KICKSTARTER LEVER ASSY THICK+ ADD | $26.30 | 1 |
| 15 | A00047-19-03 | HEX BOLT M6X20+ ADD | $2.00 | 3 |
