Muffler
All 2025 SSR SR110SE schematics

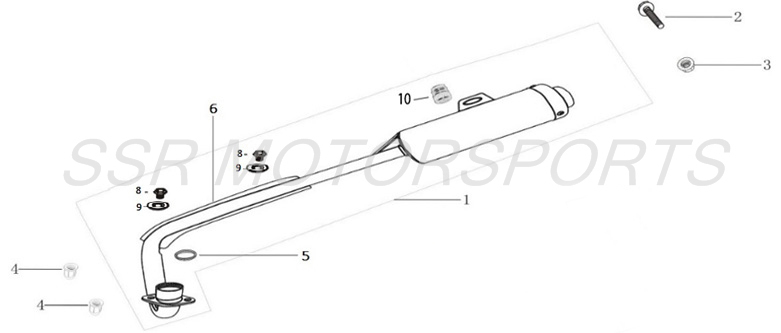

2025 SSR SR110SE - Muffler Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00081-10-00 | EXHAUST SYSTEM BLACK+ ADD | $91.00 | 1 |
| 2 | A00049-19-01 | FLANGE BOLT M8X35+ ADD | $2.50 | 1 |
| 3 | A00100-22-34 | FLANGE LOCKNUT M8+ ADD | $2.00 | 1 |
| 4 | A00001-22-01 | NUT M6+ ADD | $2.00 | 2 |
| 5 | A00115-13-00 | EXHAUST GASKET+ ADD | $6.10 | 1 |
| 6 | A00094-10-00 | MUFFLER GUARD+ ADD | $15.80 | 1 |
| 8 | A00090-20-01 | MED PANHEAD ALLEN BOLT M6X8+ ADD | $2.00 | 2 |
| 9 | A00002-21-02 | LOCK WASHER M6+ ADD | $2.00 | 2 |
| 10 | A00118-10-00 | RUBBER DAMPER+ ADD | $2.00 | 1 |
