Starter Motor - 3P
All 2025 SSR SR110SE schematics

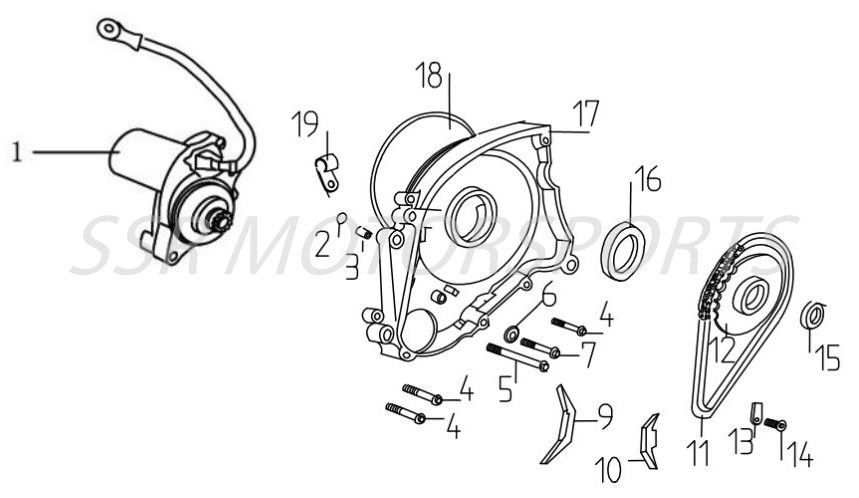

2025 SSR SR110SE - Starter Motor - 3P Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02510-09-00 | STARTER MOTOR ASSY 2-BOLT+ ADD | $101.50 | 1 |
| 2 | A00060-27-00 | O-RING 5.8X1.9+ ADD | $2.00 | 1 |
| 3 | A00003-23-00 | DOWEL PIN M8X12+ ADD | $2.00 | 2 |
| 4 | A00424-19-08 | CASE FLANGE BOLT M6X32+ ADD | $2.00 | 3 |
| 5 | A00437-19-08 | CASE FLANGE BOLT M6X105+ ADD | $2.50 | 1 |
| 6 | A01177-09-00 | ALUMINUM WASHER M6+ ADD | $2.00 | 1 |
| 7 | A00425-19-08 | CASE FLANGE BOLT M6X35+ ADD | $2.00 | 1 |
| 9 | A02433-09-00 | STARTER CHAIN SLIDER A+ ADD | $4.40 | 1 |
| 10 | A02435-09-00 | STARTER CHAIN SLIDER B+ ADD | $4.40 | 1 |
| 11 | A02520-09-00 | STARTER CHAIN 62L+ ADD | $12.30 | 1 |
| 12 | A02436-09-00 | STARTER PINION GEAR+ ADD | $26.30 | 1 |
| 13 | A03009-09-00 | STARTER CLUTCH SPRKT RETAINING PLATE+ ADD | $2.00 | 1 |
| 14 | A00445-19-08 | CASE FLANGE BOLT M6X12+ ADD | $2.00 | 1 |
| 15 | A00003-26-00 | OIL SEAL 18.9X30X5+ ADD | $4.40 | 1 |
| 16 | A00059-26-00 | OIL SEAL 30X42X4.5+ ADD | $4.40 | 1 |
| 17 | A02504-09-00 | STARTER MOTOR BRACKET+ ADD | $31.50 | 1 |
| 18 | A00093-27-00 | O-RING 116.8x2+ ADD | $8.80 | 1 |
| 19 | A01310-09-00 | COIL WIRE RETAINER+ ADD | $2.00 | 2 |
