Upper And Lower Triple Clamp
All 2025 SSR SR110SE schematics

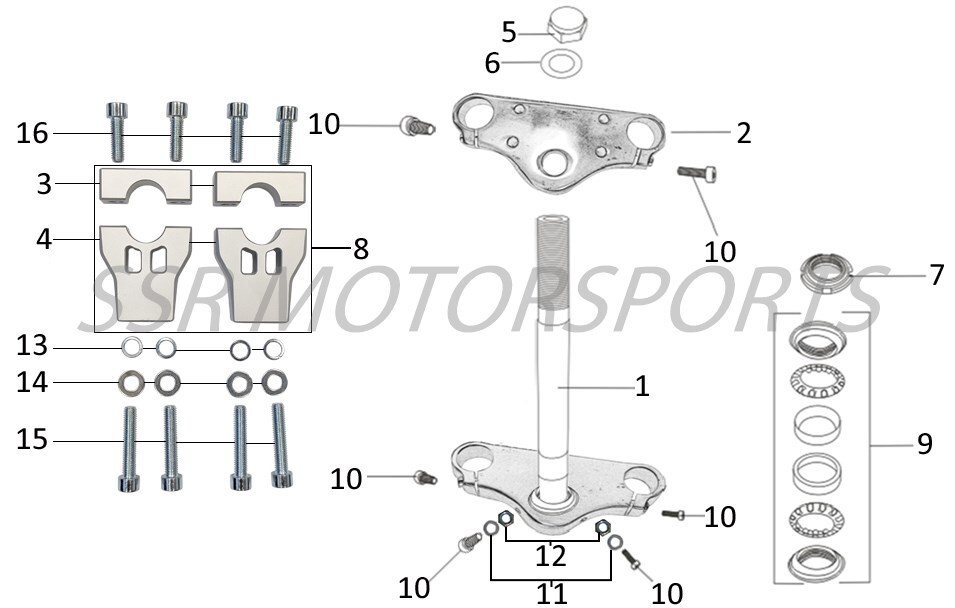

2025 SSR SR110SE - Upper And Lower Triple Clamp Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00423-15-00 | LWR TRIPLE CLAMP W/ STRNG STM+LWR RACE CNC+ ADD | $86.00 | 1 |
| 2 | A00424-15-00 | UPPER TRIPLE CLAMP CNC+ ADD | $72.00 | 1 |
| 3 | A00421-15-00 | UPPER HANDLEBAR CLAMP CNC+ ADD | $10.50 | 2 |
| 4 | A00422-15-00 | LOWER HANDLEBAR CLAMP CNC+ ADD | $12.30 | 2 |
| 5 | A00166-15-00 | STEERING STEM NUT M22X1+ ADD | $6.10 | 1 |
| 6 | A00170-15-00 | WASHER 23X36X2+ ADD | $2.60 | 1 |
| 7 | A00219-15-00 | STEERING STEM ADJUSTER NUT CRF+ ADD | $4.40 | 1 |
| 8 | A00425-15-00 | HANDLEBAR RISER ASSY CNC+ ADD | $40.00 | 1 |
| 9 | A00168-15-00 | STEERING STEM BEARING SET INCLUDES #20+ ADD | $35.00 | 1 |
| 10 | A00251-19-02 | ALLEN BOLT M8X20+ ADD | $2.00 | 6 |
| 11 | A00006-21-04 | LOCK WASHER 8X12X2.5+ ADD | $2.00 | 2 |
| 12 | A00002-22-01 | NUT M8+ ADD | $2.00 | 2 |
| 13 | A00001-21-02 | LOCK WASHER 8X13X2+ ADD | $2.00 | 4 |
| 14 | A00013-21-01 | WASHER 8X16X1.5+ ADD | $2.00 | 4 |
| 15 | A00007-19-02 | ALLEN BOLT M8X40+ ADD | $2.00 | 4 |
| 16 | A00125-19-02 | ALLEN BOLT M8X25+ ADD | $2.00 | 4 |
