Carburetor
All 2025 SSR SR125ME schematics

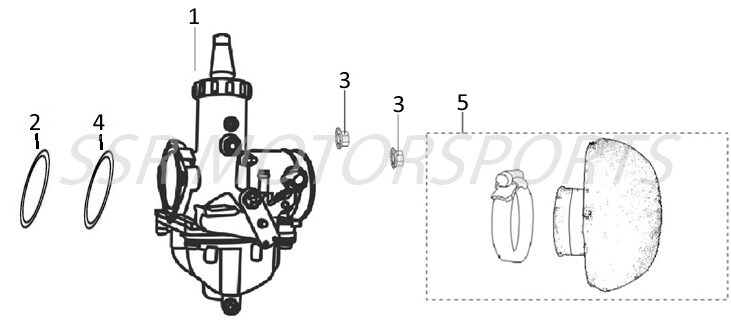

2025 SSR SR125ME - Carburetor Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00486-12-00 | CARBURETOR JK-PZ26 EPA+ ADD | $79.00 | 1 |
| 2 | A00154-27-00 | O-RING 29.2X2.5+ ADD | $2.00 | 1 |
| 3 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 2 |
| 4 | A00155-27-00 | O-RING 28.5X3+ ADD | $2.00 | 1 |
| 5 | A00381-14-00 | AIR FILTER ELEMENT - BUTTON 38 EPA+ ADD | $26.30 | 1 |
| 6 | A00417-12-00 | FLOAT BOWL O-RING JK-PZ26+ ADD | $2.60 | 1 |
Selected Parts (0)
Estimated Total: $0.00
WHERE USED
WHERE USED
Exact part-number matches verified in SSR parts catalogs.
