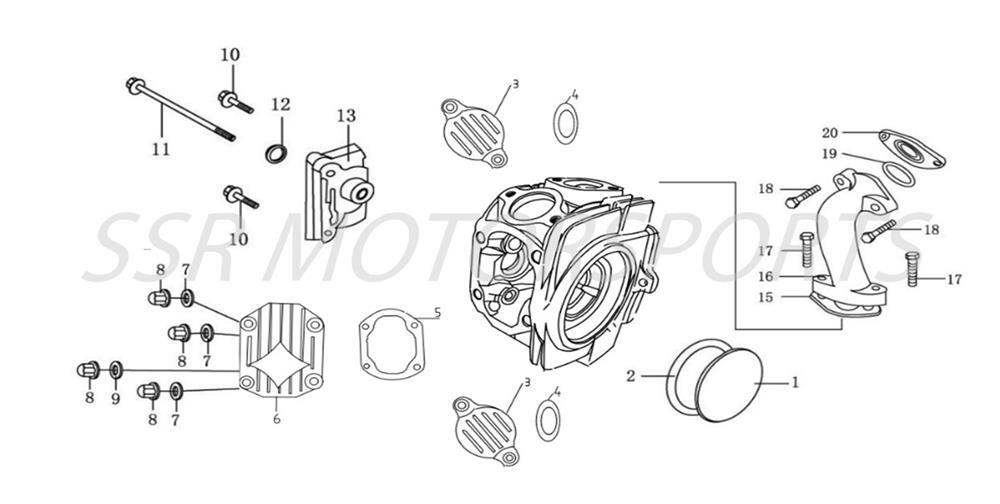

2025 SSR SR125ME - Cylinder Head Covers + Intake Manifold Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02929-09-00 | LEFT CYLINDER HEAD COVER MATTE+ ADD | $21.00 | 1 |
| 2 | A00112-13-00 | LEFT CYLINDER HEAD COVER GASKET+ ADD | $8.80 | 1 |
| 3 | A01651-09-00 | TAPPET COVER MATTE W/ FINS+ ADD | $8.80 | 2 |
| 4 | A00004-27-00 | O-RING 30.8X3.2+ ADD | $3.50 | 2 |
| 5 | A00110-13-00 | CYLINDER HEAD COVER GASKET+ ADD | $8.80 | 1 |
| 6 | A01171-09-00 | CYLINDER HEAD COVER+ ADD | $24.50 | 1 |
| 7 | A00008-21-01 | WASHER M7+ ADD | $2.00 | 3 |
| 8 | A00328-22-36 | FLANGE CAP NUT M7+ ADD | $2.00 | 4 |
| 9 | A00269-21-01 | COPPER WASHER M7+ ADD | $2.00 | 1 |
| 10 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 2 |
| 11 | A00439-19-07 | TIMING COVER FLANGE BOLT M6x110+ ADD | $2.60 | 1 |
| 12 | A01177-09-00 | ALUMINUM WASHER M6+ ADD | $2.00 | 1 |
| 13 | A01172-09-00 | RIGHT CYLINDER HEAD COVER+ ADD | $21.00 | 1 |
| 14 | A00128-13-00 | SUPERSEDED TO : A00233-13-00+ ADD | $8.80 | 1 |
| 15 | A00292-14-00 | INTAKE MANIFOLD GASKET+ ADD | $4.40 | 1 |
| 16 | A00293-14-00 | INTAKE MANIFOLD YX-02+ ADD | $42.00 | 1 |
| 17 | A00421-19-08 | CASE FLANGE BOLT M6X25+ ADD | $2.00 | 2 |
| 18 | A00424-19-08 | CASE FLANGE BOLT M6X32+ ADD | $2.00 | 2 |
| 19 | A00005-27-00 | INSULATOR O-RING 25.4X2.5+ ADD | $2.60 | 1 |
| 20 | A00272-13-00 | INTAKE INSULATOR M4.7+ ADD | $6.10 | 1 |
| 21 | A00445-19-08 | CASE FLANGE BOLT M6X12+ ADD | $2.00 | 4 |
