Timing Chain & Tensioner
All 2025 SSR SR125ME schematics

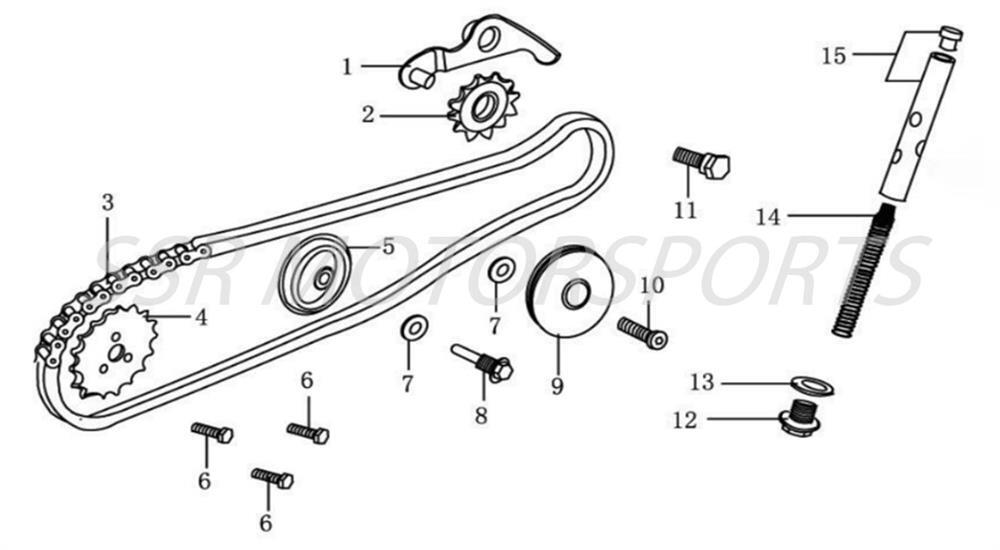

2025 SSR SR125ME - Timing Chain & Tensioner Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02444-09-00 | CAM CHAIN TENSIONER ARM+ ADD | $8.80 | 1 |
| 2 | A01257-09-00 | CAM CHAIN TENSIONER ROLLER RUBBER+ ADD | $10.50 | 1 |
| 3 | A01255-09-00 | TIMING CHAIN 84L+ ADD | $35.00 | 1 |
| 4 | A01329-09-00 | CAMSHAFT SPROCKET 28T+ ADD | $24.50 | 1 |
| 5 | A01300-09-00 | CHAIN ROLLER RUBBER+ ADD | $15.80 | 1 |
| 6 | A00025-19-03 | HEX BOLT M5X12+ ADD | $2.00 | 3 |
| 7 | A00094-21-01 | WASHER M8X14X2+ ADD | $2.00 | 1 |
| 8 | A01303-09-00 | ROLLER GUIDE BOLT+ ADD | $2.00 | 1 |
| 9 | A03342-09-00 | GUIDE SPROCKET NO TEETH+ ADD | $10.50 | 1 |
| 10 | A00090-19-02 | ALLEN BOLT M6X28+ ADD | Factory MSRP $0.00; quote required | 1 |
| 11 | A01321-09-00 | CHAIN TENSIONER ARM BOLT+ ADD | $2.50 | 1 |
| 12 | A02455-09-00 | TENSIONER BOLT M14X1.5+ ADD | $2.60 | 1 |
| 13 | A01307-09-00 | TENSIONER SEAL 14.2X20X1.5+ ADD | $2.00 | 1 |
| 14 | A01322-09-00 | TENSIONER SPRING M0.6X111.7+ ADD | $2.60 | 1 |
| 15 | A03330-09-00 | TENSIONER ROD W/ HEAD+ ADD | Factory MSRP $0.00; quote required | 1 |
