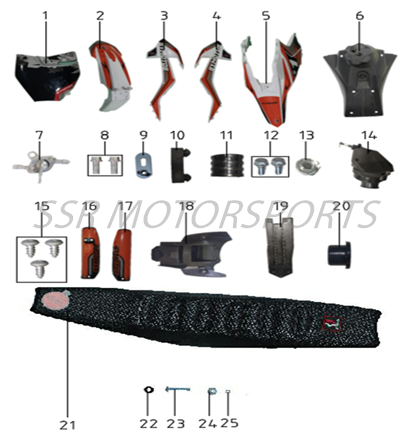

2025 SSR SR125R - Body Parts Diagram
Factory source: the combined 2025-2026 SSR SR125R catalog. This page presents the shared factory listing for 2025.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01118-02-01 | FRONT NUMBER PLATE WHITE+ ADD | $15.80 | 1 |
| 2 | A01119-02-01 | FRONT FENDER WHITE+ ADD | $19.30 | 1 |
| 3 | A01120-02-01 | LEFT RADIATOR SHROUD WHITE+ ADD | $19.30 | 1 |
| 4 | A01121-02-01 | RIGHT RADIATOR SHROUD WHITE+ ADD | $19.30 | 1 |
| 5 | A01122-02-01 | REAR FENDER WHITE+ ADD | $21.00 | 1 |
| 6 | A00471-12-00 | FUEL TANK+ ADD | $64.80 | 1 |
| 6-1 | A00472-12-00 | FUEL TANK CAP+ ADD | $15.80 | 1 |
| 7 | A00338-12-00 | FUEL PETCOCK+ ADD | $26.30 | 1 |
| 8 | A00001-19-19 | BUTTON HEAD ALLEN BOLT M6X8+ ADD | $2.00 | 8 |
| 9 | A01123-02-00 | FRONT NUMBER PLATE BRACKET+ ADD | $10.50 | 1 |
| 10 | A00473-12-00 | FUEL TANK DAMPER RECTANGULAR+ ADD | $2.60 | 1 |
| 11 | A00474-12-00 | FUEL TANK DAMPER SEMICIRCULAR+ ADD | $2.60 | 1 |
| 12 | A00002-19-01 | FLANGE BOLT M6X16+ ADD | $2.00 | 2 |
| 14 | A00370-14-00 | AIRBOX+ ADD | $15.80 | 1 |
| 14-1 | A00371-14-00 | AIR FILTER ELEMENT+ ADD | $11.50 | 1 |
| 14-2 | A00380-14-00 | AIRBOX CLIP+ ADD | $2.00 | 3 |
| 14-3 | A00386-14-00 | AIRBOX SCREEN+ ADD | $5.50 | 1 |
| 14-4 | A00387-14-00 | COLLAR AIRBOX COLLAR+ ADD | $4.50 | 1 |
| 15 | A00002-20-03 | ST SCREW ST4.2X12+ ADD | $2.00 | 3 |
| 16 | A01112-02-02 | LEFT FRONT FORK GUARD BLACK+ ADD | $15.80 | 1 |
| 17 | A01113-02-02 | RIGHT FRONT FORK GUARD BLACK+ ADD | $15.80 | 1 |
| 18 | A01116-02-02 | REAR INNER FENDER BLACK+ ADD | $14.00 | 1 |
| 19 | A01117-02-02 | MUDFLAP BLACK+ ADD | $5.30 | 1 |
| 21 | A01111-02-00 | SEAT+ ADD | $75.30 | 1 |
| 22 | A00002-21-07 | RUBBER WASHER 10X18XH7+ ADD | $2.00 | 1 |
| 23 | A00002-19-19 | PAN HEAD ALLEN BOLT M6X40+ ADD | $2.00 | 1 |
| 24 | A01157-02-00 | COLLAR M6X18X1.5+ ADD | $2.00 | 1 |
| 25 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 1 |
