Front Wheel
All 2025 SSR SR125R schematics

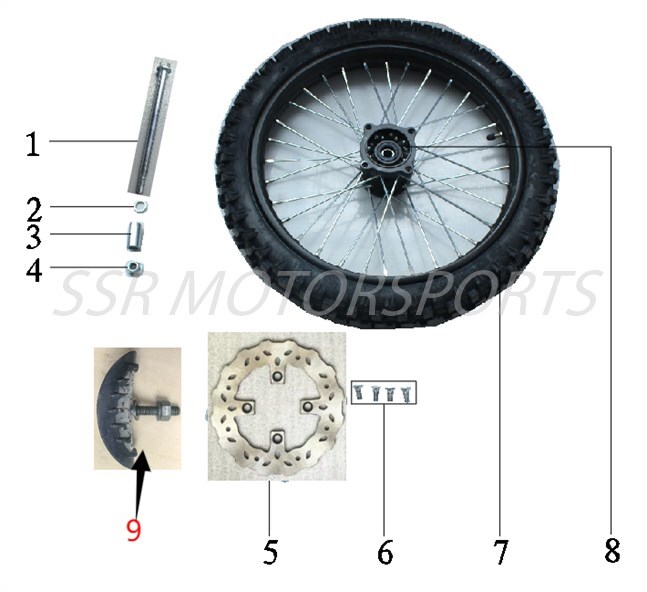

2025 SSR SR125R - Front Wheel Parts Diagram
Factory source: the combined 2025-2026 SSR SR125R catalog. This page presents the shared factory listing for 2025.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00657-18-00 | FRONT WHEEL AXLE M15X220X14X1.5+ ADD | $35.00 | 1 |
| 2 | A00658-18-00 | FRONT RIGHT WHEEL SPACER M15X22XL20+ ADD | $6.10 | 1 |
| 3 | A00227-18-00 | WHEEL SPACER M15X22XL28+ ADD | $4.40 | 1 |
| 4 | A00003-22-01 | FLANGE LOCKNUT M14x1.5+ ADD | $2.60 | 1 |
| 5 | A00770-04-00 | FRONT BRAKE ROTOR 220MM+ ADD | $31.50 | 1 |
| 6 | A00034-19-10 | ROTOR BOLT M8X16 ALLEN+ ADD | $2.00 | 4 |
| 7 | A00527-18-00 | FRONT TIRE W/ TUBE + RIM STRIP 60/100-14+ ADD | $49.00 | 1 |
| 8 | A00336-18-00 | FRONT WHEEL ASSY 1.4-14 BLACK+ ADD | $109.00 | 1 |
| 9 | A00065-18-00 | RIM LOCK 1.6+ ADD | $28.00 | 1 |
| 10 | A00017-28-00 | BEARING 6202-RS+ ADD | $8.00 | 2 |
