Handlebars
All 2025 SSR SR125R schematics

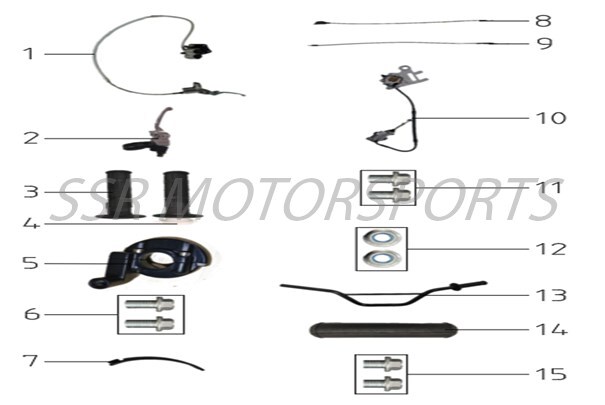

2025 SSR SR125R - Handlebars Parts Diagram
Factory source: the combined 2025-2026 SSR SR125R catalog. This page presents the shared factory listing for 2025.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00768-04-00 | FRONT BRAKE ASSY L=1130+ ADD | $138.00 | 1 |
| 1-1 | A00638-05-00 | FRONT BRAKE LEVER FOLDING+ ADD | $21.00 | 1 |
| 1-2 | A00499-04-00 | FRONT BRAKE PAD SET+ ADD | $21.00 | 1 |
| 2 | A00617-05-00 | CLUTCH PERCH ASSY+ ADD | $29.80 | 1 |
| 2-1 | A00639-05-00 | CLUTCH LEVER FOLDING+ ADD | $21.00 | 1 |
| 3 | A00347-05-00 | LEFT HANDLEBAR GRIP BLACK+ ADD | $8.00 | 1 |
| 4 | A00397-05-00 | THROTTLE GRIP W/ TUBE+ ADD | $8.80 | 1 |
| 5 | A00311-05-00 | THROTTLE HOUSING+ ADD | $21.00 | 1 |
| 6 | A00012-19-01 | FLANGE BOLT M6X35+ ADD | $2.00 | 2 |
| 7 | A00622-05-00 | RUBBER CABLE STRAP 4X250+ ADD | $2.50 | 2 |
| 8 | A00618-05-00 | CLUTCH CABLE 850 70+ ADD | $19.30 | 1 |
| 9 | A00619-05-00 | THROTTLE CABLE 800 105+ ADD | $19.30 | 1 |
| 10 | A00769-04-00 | REAR BRAKE ASSY L=520+ ADD | $122.50 | 1 |
| 10-1 | A00478-04-00 | REAR BRAKE PAD SET+ ADD | $21.00 | 1 |
| 11 | A00003-19-01 | FLANGE BOLT M6X25+ ADD | $2.00 | 1 |
| 12 | A00005-22-04 | FLANGE LOCKNUT M6+ ADD | $2.00 | 3 |
| 13 | A00623-05-00 | HANDLEBAR 735X165 - GRIP NOT INCLUDED+ ADD | $36.80 | 1 |
| 14 | A00624-05-00 | HANDLEBAR PAD 10X47XL200+ ADD | $8.80 | 1 |
| 15 | A00024-19-01 | FLANGE BOLT M6X22+ ADD | $2.00 | 2 |
