Rear Wheel
All 2025 SSR SR125R schematics

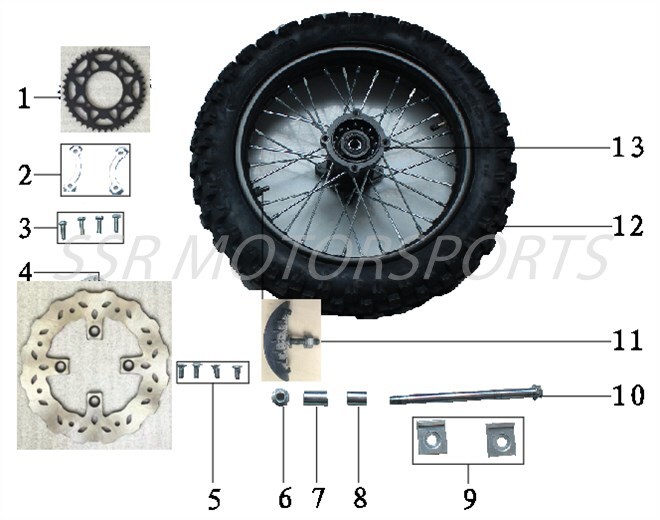

2025 SSR SR125R - Rear Wheel Parts Diagram
Factory source: the combined 2025-2026 SSR SR125R catalog. This page presents the shared factory listing for 2025.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00244-07-00 | REAR SPROCKET 41T-428+ ADD | $45.50 | 1 |
| 2 | A00296-07-00 | SPROCKET BOLT RETAINER PLATE+ ADD | $8.80 | 2 |
| 3 | A00007-19-11 | FLANGE BOLT M8X25 - 10MM HEAD+ ADD | $2.00 | 4 |
| 4 | A00771-04-00 | REAR BRAKE ROTOR Φ76X190XH3.5+ ADD | $42.00 | 1 |
| 5 | A00034-19-10 | ROTOR BOLT M8X16 ALLEN+ ADD | $2.00 | 4 |
| 6 | A00003-22-01 | FLANGE LOCKNUT M14x1.5+ ADD | $2.60 | 1 |
| 7 | A00227-18-00 | WHEEL SPACER M15X22XL28+ ADD | $4.40 | 1 |
| 8 | A00659-18-00 | REAR RIGHT WHEEL SPACER M15X22XL31+ ADD | $6.10 | 1 |
| 9 | A00660-18-00 | CHAIN ADJUSTER BRACKET+ ADD | $8.00 | 2 |
| 10 | A00672-18-00 | REAR WHEEL AXLE M15X215X14X1.5 10.9+ ADD | $38.50 | 1 |
| 11 | A00352-18-00 | RIM LOCK KAYO 1.85+ ADD | $8.80 | 1 |
| 12 | A00562-18-00 | REAR TIRE W/ TUBE+ RIM STRIP 80/100-12+ ADD | $64.80 | 1 |
| 13 | A00636-18-00 | REAR WHEEL ASSY W/ RIM LOCK HOLE+ ADD | $109.00 | 1 |
| 14 | A00017-28-00 | BEARING 6202-RS+ ADD | $8.00 | 2 |
