Starter Clutch
All 2025 SSR SR125R schematics

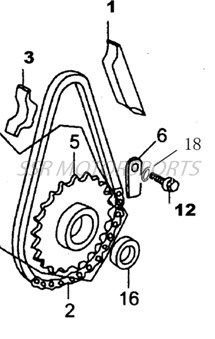

2025 SSR SR125R - Starter Clutch Parts Diagram
Factory source: the combined 2025-2026 SSR SR125R catalog. This page presents the shared factory listing for 2025.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A03297-09-00 | CHAIN SLIDER+ ADD | $6.10 | 1 |
| 2 | A03057-09-00 | STARTER CHAIN 64L+ ADD | $13.70 | 1 |
| 3 | A03298-09-00 | CHAIN TENSIONER SLIDER+ ADD | $6.10 | 1 |
| 5 | A03299-09-00 | STARTER PINION GEAR+ ADD | $8.80 | 1 |
| 6 | A02516-09-00 | GEAR RETAINER PLATE+ ADD | $6.10 | 1 |
| 12 | A00417-19-08 | CASE FLANGE BOLT M6X10+ ADD | $2.00 | 1 |
| 16 | A00003-26-00 | OIL SEAL 18.9X30X5+ ADD | $4.40 | 1 |
