Swingarm
All 2025 SSR SR125R schematics

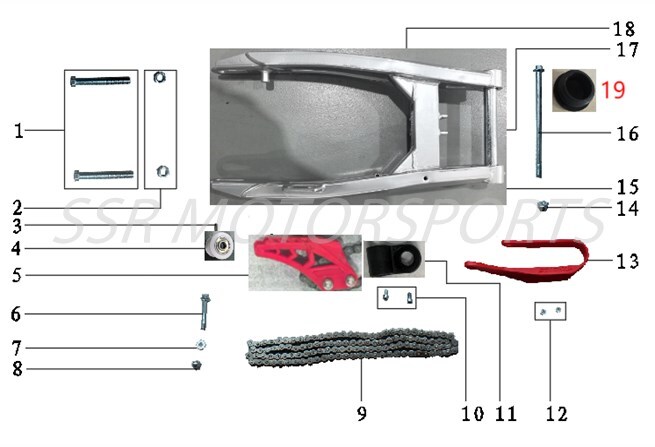

2025 SSR SR125R - Swingarm Parts Diagram
Factory source: the combined 2025-2026 SSR SR125R catalog. This page presents the shared factory listing for 2025.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00014-19-01 | FLANGE BOLT M8X40+ ADD | $2.50 | 1 |
| 2 | A00003-22-03 | FLANGE LOCKNUT M8+ ADD | $2.00 | 1 |
| 3 | A00007-28-00 | BALL BEARING M8X22XH7+ ADD | $4.40 | 2 |
| 4 | A00645-11-00 | CHAIN ROLLER WHITE+ ADD | $8.80 | 1 |
| 5 | A00646-11-00 | LOWER CHAIN GUIDE+ ADD | $10.50 | 1 |
| 6 | A00414-19-01 | FLANGE BOLT M8X55+ ADD | $3.50 | 1 |
| 7 | A00647-11-00 | SPACER M8X10XL3.5+ ADD | $5.30 | 1 |
| 8 | A00004-22-36 | FLANGE CAP NUT M8+ ADD | $2.00 | 1 |
| 9 | A00437-07-00 | DRIVE CHAIN 428-108L+ ADD | $68.30 | 1 |
| 10 | A00001-19-19 | BUTTON HEAD ALLEN BOLT M6X8+ ADD | $2.00 | 2 |
| 11 | A00438-07-00 | REAR BRAKE HOSE HOLDER BLACK PLASTIC+ ADD | $4.40 | 1 |
| 12 | A00008-19-03 | FLANGE BOLT M6X12+ ADD | $2.00 | 2 |
| 13 | A00649-11-00 | FRONT CHAIN SLIDER+ ADD | $19.30 | 1 |
| 14 | A00001-22-03 | FLANGE LOCKNUT M12+ ADD | $2.50 | 1 |
| 15 | A00003-28-01 | BEARING 6001RS (SHIELDED)+ ADD | $12.30 | 2 |
| 16 | A00650-11-00 | SWINGARM AXLE M12X220XM12X1.25MM+ ADD | $10.50 | 1 |
| 17 | A00648-11-00 | SPACER M15X20XL164+ ADD | $8.00 | 1 |
| 18 | A00651-11-00 | SWINGARM L440+ ADD | $127.80 | 1 |
| 19 | A00676-11-00 | FRAME PLUG 21X30XH15 BLK PLASTIC+ ADD | Factory MSRP $0.00; quote required | 2 |
Selected Parts (0)
Estimated Total: $0.00
WHERE USED
WHERE USED
Exact part-number matches verified in SSR parts catalogs.
