Triple Clamps
All 2025 SSR SR125R schematics

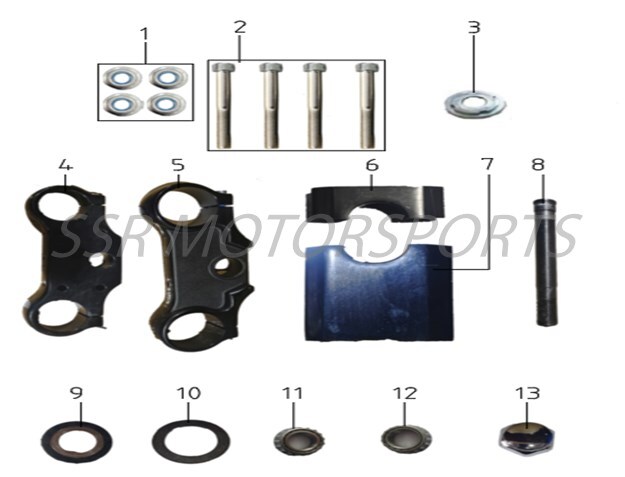

2025 SSR SR125R - Triple Clamps Parts Diagram
Factory source: the combined 2025-2026 SSR SR125R catalog. This page presents the shared factory listing for 2025.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00001-22-04 | FLANGE LOCKNUT M8+ ADD | $2.00 | 4 |
| 2 | A00417-19-02 | ALLEN BOLT M8X105+ ADD | $2.60 | 4 |
| 3 | A00428-15-00 | STEERING STEM ADJUSTER NUT+ ADD | $4.40 | 1 |
| 4 | A00625-05-00 | UPPER TRIPLE CLAMP+ ADD | $68.30 | 1 |
| 5 | A00626-05-00 | LOWER TRIPLE CLAMP+ ADD | $68.30 | 1 |
| 6 | A00627-05-00 | UPPER HANDLEBAR CLAMP+ ADD | $8.00 | 2 |
| 7 | A00628-05-00 | LOWER HANDLEBAR CLAMP+ ADD | $12.30 | 2 |
| 8 | A00420-15-00 | STEERING STEM L=248+ ADD | $19.30 | 1 |
| 9 | A00758-16-00 | DUST SEAL 24/45+ ADD | $4.40 | 1 |
| 11 | A00182-15-00 | UPPER STEERING STEM BEARING 320/22+ ADD | $15.80 | 1 |
| 12 | A00183-15-00 | LOWER STEERING STEM BEARING 320/23.5+ ADD | $15.80 | 1 |
| 13 | A00166-15-00 | STEERING STEM NUT M22X1+ ADD | $6.10 | 1 |
Selected Parts (0)
Estimated Total: $0.00
WHERE USED
WHERE USED
Exact part-number matches verified in SSR parts catalogs.
