Valves
All 2025 SSR SR125R schematics

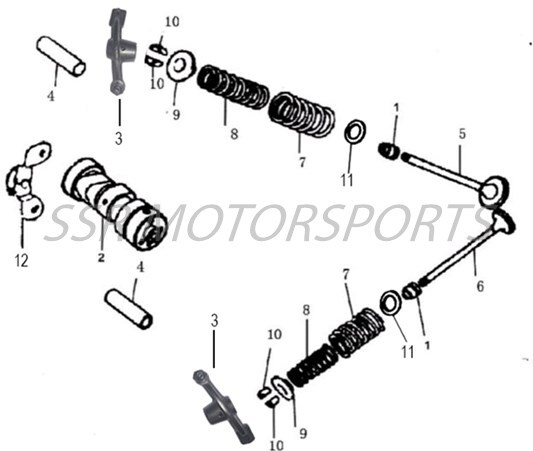

2025 SSR SR125R - Valves Parts Diagram
Factory source: the combined 2025-2026 SSR SR125R catalog. This page presents the shared factory listing for 2025.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02880-09-00 | VALVE STEM SEAL BANGEN+ ADD | $2.60 | 2 |
| 2 | A02873-09-00 | CAMSHAFT BANGEN+ ADD | $75.30 | 1 |
| 3 | A02871-09-00 | ROCKER ARM ASSY+ ADD | $24.50 | 2 |
| 4 | A02872-09-00 | ROCKER SHAFT BANGEN+ ADD | $6.10 | 2 |
| 5 | A02863-09-00 | INTAKE VALVE+ ADD | $14.00 | 1 |
| 6 | A02864-09-00 | EXHAUST VALVE+ ADD | $14.00 | 1 |
| 7 | A02877-09-00 | OUTER VALVE SPRING BANGEN+ ADD | $6.10 | 2 |
| 8 | A02878-09-00 | INNER VALVE SPRING BANGEN+ ADD | $6.10 | 2 |
| 9 | A02876-09-00 | UPPER VALVE SPRING RETAINER BANGEN+ ADD | $8.00 | 2 |
| 10 | A02874-09-00 | COLLET BANGEN+ ADD | $2.50 | 4 |
| 11 | A02881-09-00 | LOWER VALVE SPRING RETAINER BANGEN+ ADD | $8.00 | 2 |
| 12 | A01654-09-00 | ROCKER SHAFT RETAINER PLATE+ ADD | $6.10 | 1 |
