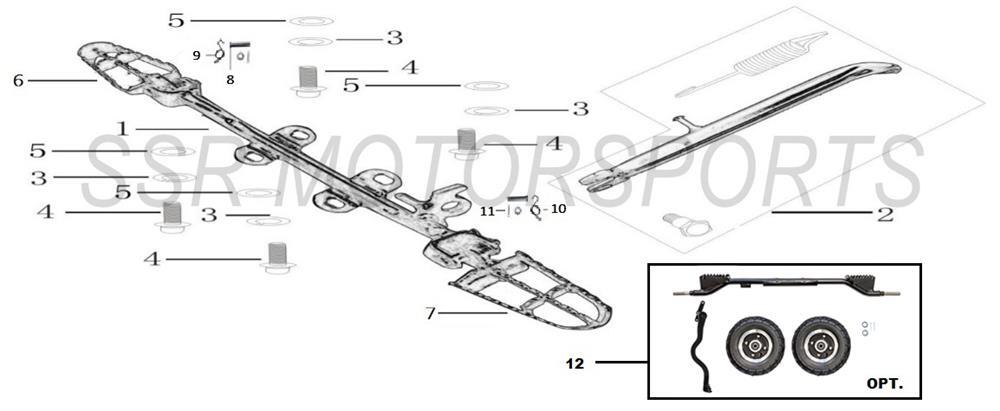

2025 SSR SR70AE - Footpegs And Bracket Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00352-05-00 | FOOTPEG BRACKET ASSEMBLY BLACK (INCLUDES: 1,6,7,8,9,10,11)+ ADD | $75.30 | 1 |
| 2 | A00353-05-00 | SIDE STAND W/ SPRING + BOLT L=160 BLACK+ ADD | $31.50 | 1 |
| 3 | A00062-21-01 | WASHER 8X13X2+ ADD | $2.00 | 4 |
| 4 | A00015-19-01 | FLANGE BOLT M8X20 S12+ ADD | $2.00 | 4 |
| 5 | A00013-21-01 | WASHER 8X16X1.5+ ADD | $2.00 | 4 |
| 6 | A00324-05-00 | RIGHT FOOTPEG+ ADD | $21.00 | 1 |
| 7 | A00326-05-00 | LEFT FOOTPEG+ ADD | $21.00 | 1 |
| 8 | A00336-05-00 | FOOTPEG PIVOT PIN 7.8X42+ ADD | $2.00 | 2 |
| 9 | A00505-05-00 | RIGHT FOOTPEG SPRING+ ADD | $2.00 | 1 |
| 10 | A00506-05-00 | LEFT FOOTPEG SPRING+ ADD | $2.00 | 1 |
| 11 | A00019-28-01 | COTTER PIN 2.5X24+ ADD | $2.00 | 2 |
| 12 | A00056-01-00 | TRAINING WHEEL KIT (SR70C/70AE) 200x50+ ADD | $154.00 | 1 |
| 13 | A00619-18-00 | TRAINING WHEEL TIRE+ ADD | $29.80 | 2 |
| 14 | A00179-28-00 | TRAINING WHEEL BEARING 10mm+ ADD | $8.00 | 4 |
| 15 | A00113-01-00 | TRAINING WHEEL ASSY GEN. 2 - FOR MAG WHEEL (10MM)+ ADD | $47.30 | 2 |
| 16 | A00620-18-00 | INNERTUBE 2.00-5+ ADD | $15.80 | 2 |
| 17 | A00089-01-00 | TRAINING WHEEL KIT REAR BRAKE PEDAL (SR70C/SR70AE) BLACK+ ADD | $21.00 | 1 |
