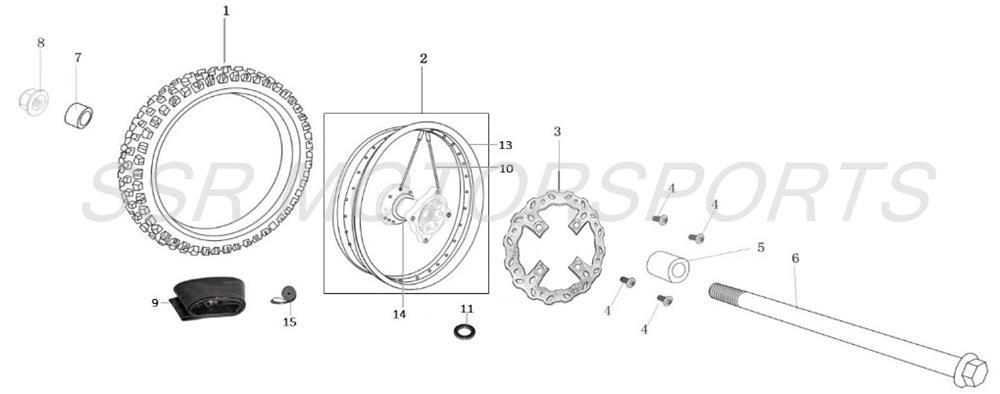

2025 SSR SR70AE - Front Wheel Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00322-18-00 | FRONT/REAR TIRE 2.50-10+ ADD | $29.80 | 1 |
| 2 | A00524-18-00 | FRONT WHEEL ASSY 1.4-10 (32 SPOKE)+ ADD | $88.20 | 1 |
| 3 | A00782-04-00 | FRONT/REAR BRAKE ROTOR 190+ ADD | $31.50 | 1 |
| 4 | A00034-19-10 | ROTOR BOLT M8X16 ALLEN+ ADD | $2.00 | 4 |
| 5 | A00675-18-00 | FRONT LEFT WHEEL SPACER 12X20X31+ ADD | $5.30 | 1 |
| 6 | A00278-18-00 | WHEEL AXLE 12X205-1.25+ ADD | $12.30 | 1 |
| 7 | A00676-18-00 | FRONT RIGHT WHEEL SPACER 12X20X23+ ADD | $6.10 | 1 |
| 8 | A00001-22-03 | FLANGE LOCKNUT M12+ ADD | $2.50 | 1 |
| 9 | A00219-18-00 | INNER TUBE 2.50-10+ ADD | $15.80 | 1 |
| 10 | A00454-18-00 | FRONT SPOKES W/ NIPPLE SET (32PCS/SET) 16 INNER/16 OUTER/32 NIPPLES+ ADD | $24.50 | 1 |
| 11 | A00075-28-00 | BEARING 6301-2RS+ ADD | $6.10 | 2 |
| 14 | A00399-18-00 | FRONT WHEEL HUB+ ADD | $85.80 | 1 |
| 15 | A00334-18-00 | RIM STRIP 10"+ ADD | $6.10 | 1 |
