Valves & Camshaft
All 2025 SSR SR70AE schematics

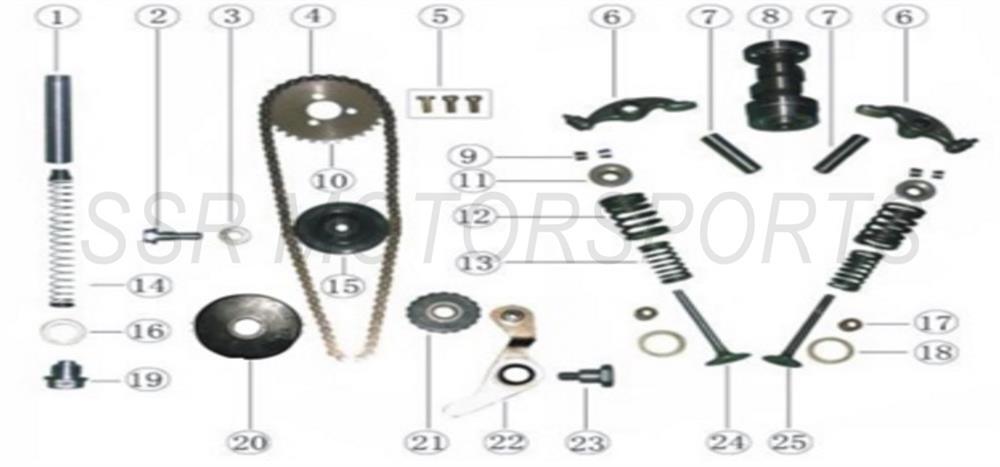

2025 SSR SR70AE - Valves & Camshaft Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01323-09-00 | TENSIONER ROD+ ADD | $8.00 | 1 |
| 2 | A01303-09-00 | ROLLER GUIDE BOLT+ ADD | $2.00 | 1 |
| 3 | A00094-21-01 | WASHER M8X14X2+ ADD | $2.00 | 1 |
| 4 | A02442-09-00 | TIMING CHAIN 82L+ ADD | $21.00 | 1 |
| 5 | A00025-19-03 | HEX BOLT M5X12+ ADD | $2.00 | 3 |
| 6 | A01187-09-00 | ROCKER ARM+ ADD | $19.30 | 2 |
| 7 | A01188-09-00 | ROCKER ARM SHAFT+ ADD | $6.10 | 2 |
| 8 | A01185-09-00 | CAMSHAFT+ ADD | $75.30 | 1 |
| 9 | A01195-09-00 | COLLET+ ADD | $2.50 | 4 |
| 10 | A01329-09-00 | CAMSHAFT SPROCKET 28T+ ADD | $24.50 | 1 |
| 11 | A01193-09-00 | UPPER VALVE SPRING RETAINER+ ADD | $8.00 | 2 |
| 12 | A01191-09-00 | OUTER VALVE SPRING+ ADD | $6.10 | 2 |
| 13 | A01192-09-00 | INNER VALVE SPRING+ ADD | $6.10 | 2 |
| 14 | A01322-09-00 | TENSIONER SPRING M0.6X111.7+ ADD | $2.60 | 1 |
| 15 | A01300-09-00 | CHAIN ROLLER RUBBER+ ADD | $15.80 | 1 |
| 16 | A01307-09-00 | TENSIONER SEAL 14.2X20X1.5+ ADD | $2.00 | 1 |
| 17 | A02858-09-00 | VALVE STEM SEAL+ ADD | $2.60 | 2 |
| 18 | A01194-09-00 | LOWER VALVE SPRING RETAINER+ ADD | $8.00 | 2 |
| 19 | A02455-09-00 | TENSIONER BOLT M14X1.5+ ADD | $2.60 | 1 |
| 20 | A01304-09-00 | GUIDE SPROCKET RUBBER+ ADD | $10.50 | 1 |
| 21 | A01257-09-00 | CAM CHAIN TENSIONER ROLLER RUBBER+ ADD | $10.50 | 1 |
| 22 | A02444-09-00 | CAM CHAIN TENSIONER ARM+ ADD | $8.80 | 1 |
| 23 | A01321-09-00 | CHAIN TENSIONER ARM BOLT+ ADD | $2.50 | 1 |
| 24 | A01190-09-00 | EXHAUST VALVE+ ADD | $14.00 | 1 |
| 25 | A01189-09-00 | INTAKE VALVE+ ADD | $14.00 | 1 |
