2025 SSR XD150 Crankshaft

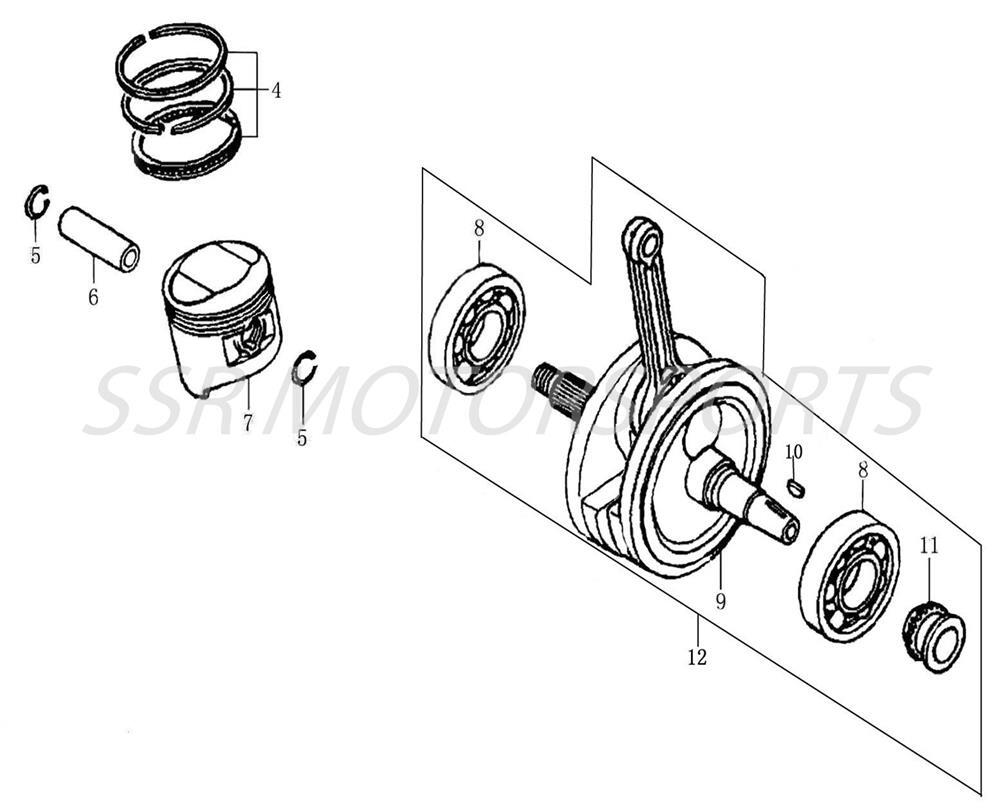

2025 SSR XD150 - Crankshaft Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 4 | A03249-09-00 | PISTON RING SET+ ADD | $45.50 | 1 |
| 5 | A03250-09-00 | PISTON PIN CLIP+ ADD | $2.00 | 2 |
| 6 | A03251-09-00 | PISTON PIN+ ADD | $14.00 | 1 |
| 7 | A03252-09-00 | PISTON+ ADD | $59.50 | 1 |
| 8 | A00099-28-00 | BEARING 63/28 P5+ ADD | $14.00 | 2 |
| 9 | A03253-09-00 | CRANKSHAFT ASSY+ ADD | $138.30 | 1 |
| 10 | A03254-09-00 | WOODRUFF KEY+ ADD | $2.00 | 1 |
| 11 | A03255-09-00 | DRIVEN GEAR+ ADD | $38.50 | 1 |
| 12 | A03256-09-00 | CRANKSHAFT ASSY W/ BEARINGS+ ADD | $175.00 | 1 |
