2025 SSR XD150 Cylinder Head

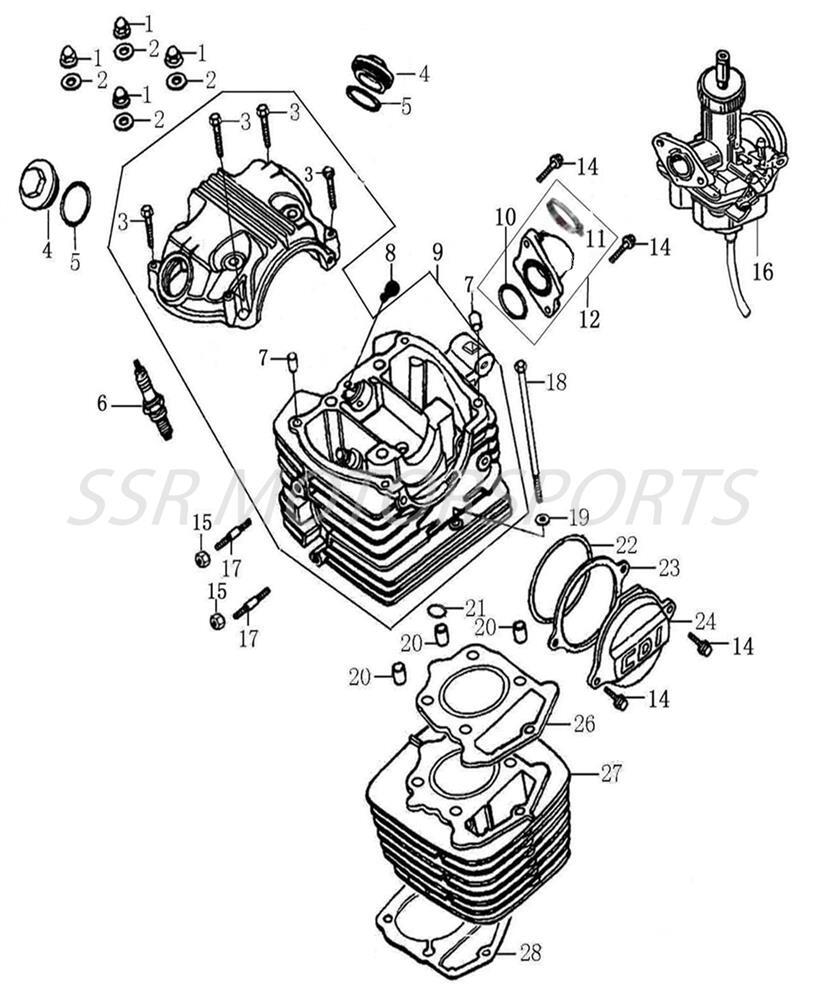

2025 SSR XD150 - Cylinder Head Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00004-22-06 | CAP NUT M8+ ADD | $2.00 | 4 |
| 2 | A00264-21-01 | COPPER WASHER M8X18X2+ ADD | $2.00 | 4 |
| 3 | A00425-19-08 | CASE FLANGE BOLT M6X35+ ADD | $2.00 | 4 |
| 4 | A03169-09-00 | VALVE INSPECTION CAP+ ADD | $8.00 | 2 |
| 5 | A00052-27-00 | O-RING 35X3+ ADD | $2.60 | 2 |
| 6 | DP8EA-9 | SPARK PLUG DP8EA-9+ ADD | $14.00 | 1 |
| 7 | A00001-23-00 | DOWEL PIN M8X14+ ADD | $2.00 | 2 |
| 8 | A03170-09-00 | RUBBER OIL PLUG+ ADD | $2.50 | 1 |
| 9 | A03171-09-00 | CYLINDER HEAD ASSY+ ADD | $192.50 | 1 |
| 10 | A00062-27-00 | O-RING 33.5X3+ ADD | $2.00 | 1 |
| 11 | A00005-24-02 | HOSE CLAMP 32-44+ ADD | $8.80 | 1 |
| 12 | A00372-14-00 | INTAKE MANIFOLD ASSY+ ADD | $19.30 | 1 |
| 14 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 4 |
| 15 | A00003-22-03 | FLANGE LOCKNUT M8+ ADD | $2.00 | 2 |
| 16 | A00475-12-00 | CARBURETOR ASSY PE28-39S 115/36+ ADD | $119.00 | 1 |
| 17 | A00010-19-04 | STUD M8X35-BLACK+ ADD | $2.00 | 2 |
| 18 | A00054-19-03 | HEX/FLANGE BOLT M6X110+ ADD | $2.00 | 1 |
| 19 | A00091-21-01 | WASHER M6X13X2.0 - SILVER+ ADD | $2.00 | 1 |
| 20 | A00018-23-00 | DOWEL PIN 10X20+ ADD | $2.00 | 3 |
| 21 | A00048-27-00 | O-RING 10X1.6+ ADD | $2.00 | 1 |
| 22 | A00007-27-00 | O-RING 75X2.65+ ADD | $3.50 | 1 |
| 23 | A00318-13-00 | LEFT CYLINDER HEAD COVER GASKET+ ADD | $3.50 | 1 |
| 24 | A03172-09-00 | LEFT CYLINDER HEAD COVER+ ADD | $8.80 | 1 |
| 26 | A00319-13-00 | CYLINDER HEAD GASKET+ ADD | $14.00 | 1 |
| 27 | A03173-09-00 | CYLINDER+ ADD | $187.30 | 1 |
| 28 | A00320-13-00 | CYLINDER BASE GASKET+ ADD | $8.80 | 1 |
