16. Brakes

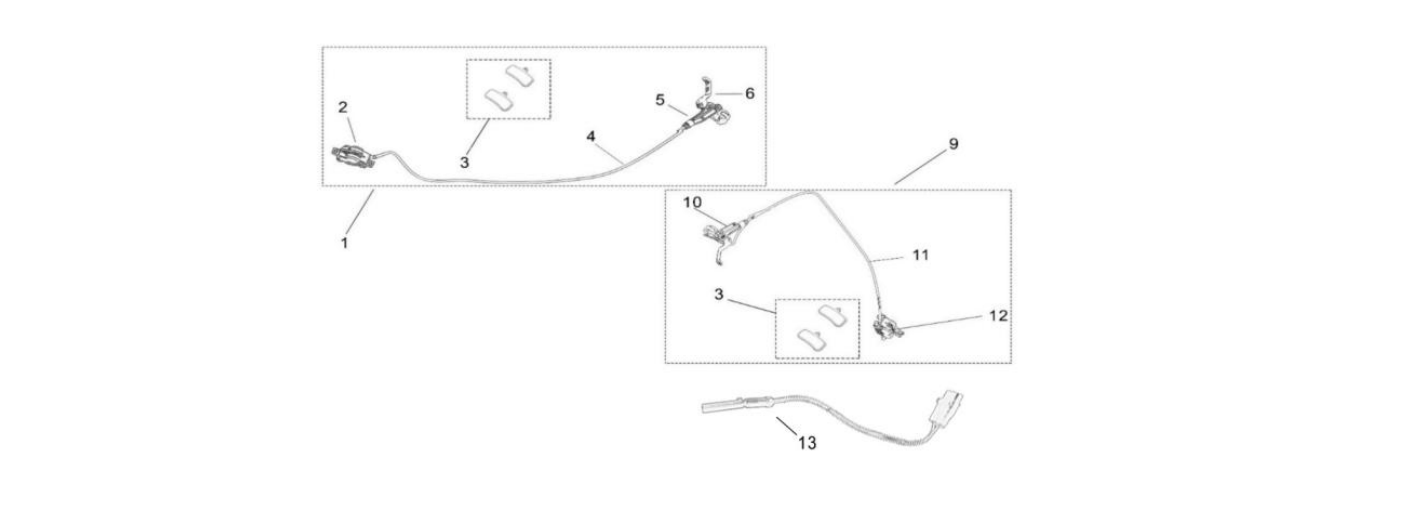

2025 Surron Light Bee X - Brakes Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 16_01 | 52200-YQ2F-0000 | MY17-24 | $179.00 | 1 |
| 16_01 | 52200-Y028A-0100 | MY25Compatible to MY17-24 only if change the entire system | $179.00 | 1 |
| 16_02 | 52190-YQ2F-0000 | MY17-24 | $97.00 | 1 |
| 16_02 | 52190-Y028A-0000 | MY25Cannot be replaced separately | $97.00 | 1 |
| 16_03 | 52191-YQ2B-0100 | All MY | $19.00 | 2 |
| 16_04 | 52240-YQ2A-0000 | MY17-24 | $30.00 | 1 |
| 16_04 | 52240-Y028A-0000 | MY25Cannot be replaced separately | $30.00 | 1 |
| 16_05 | 52210-YQ2B-0000 | MY17-24 | $78.00 | 1 |
| 16_05 | 52210-Y028A-0000 | MY25 | $78.00 | 1 |
| 16_06 | 52111-YQ2B-0000 | All MY | $7.00 | 2 |
| 16_09 | 52100-YQ2F-0000 | MY17-24 | $171.00 | 1 |
| 16_09 | 52100-Y028A-0100 | MY25Compatible to MY17-24 only if change the entire system | $171.00 | 1 |
| 16_10 | 52110-YQ2B-0000 | MY17-24 | $78.00 | 1 |
| 16_10 | 52110-Y028A-0000 | MY25 | $78.00 | 1 |
| 16_11 | 52140-YQ2A-0000 | MY17-24 | $17.00 | 1 |
| 16_11 | 52140-Y028A-0000 | MY25 | $17.00 | 1 |
| 16_13 | 52122-YQ2A-0000 | All MYPrev. P/N 52120-YQ2B-0000 | $17.00 | 1 |
