12. Electrical - Controller, Battery, Charger

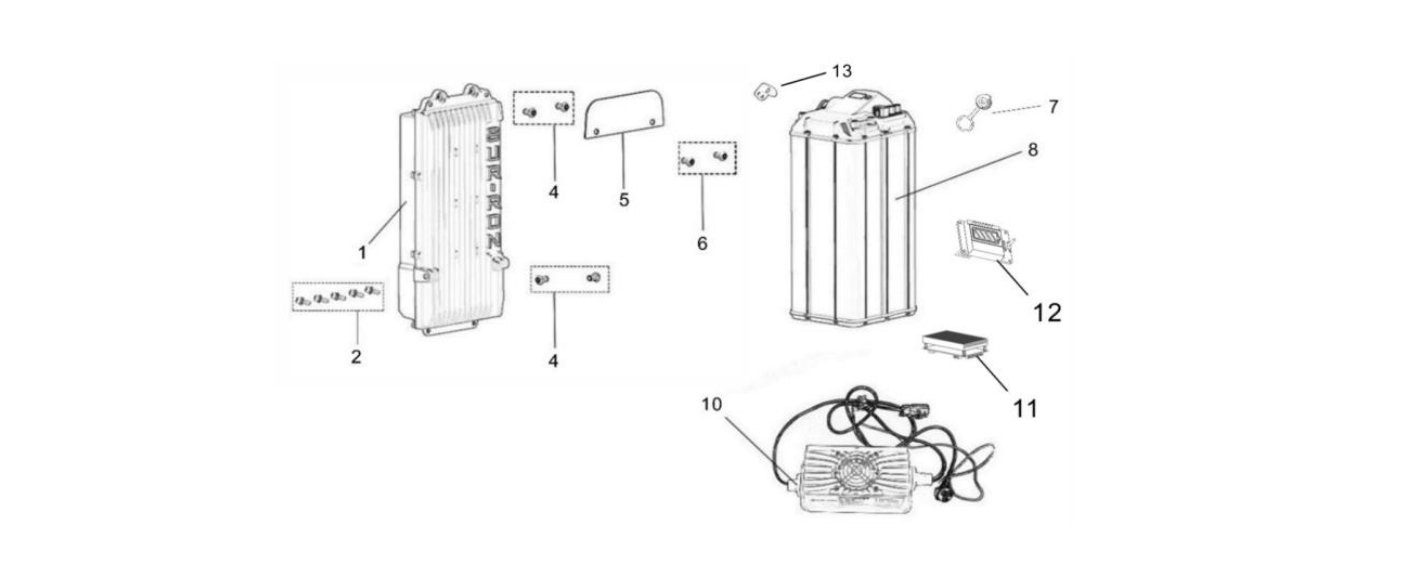

2025 Surron Light Bee X - Electrical - Controller, Battery, Charger Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 12_01 | 21100-YQ2A-0700 | MY17-24 | $788.00 | 1 |
| 12_01 | 21100-Y029A-0100 | MY25Can be applied to old version but power stays at 6kW | $788.00 | 1 |
| 12_02 | B8-001-06-016-F2 | All MY | $0.40 | 5 |
| 12_04 | B3-002-06-012-F0 | All MY | $0.40 | 4 |
| 12_05 | 21103-YQ2A-0000 | All MY | $5.60 | 1 |
| 12_06 | B3-002-05-010-F0 | All MYP/N changed. Prev. B3-002-06-012-F0 | $0.40 | 2 |
| 12_07 | 26351-YQ2A-0000 | MY17-23 | $0.40 | 1 |
| 12_07 | 26351-YQ2A-0100 | MY24-25New item | $0.40 | 1 |
| 12_08 | 26000-YQ2A-1200 | MY24New item. The old dual-connector battery is no longer available for sale | $1,503.00 | 1 |
| 12_08 | 26000-Y029A-0000 | MY25NOT compatible with old version | $1,503.00 | 1 |
| 12_10 | 21700-YQ2A-1000 | MY17-24 | $283.00 | 1 |
| 12_10 | 21700-Y028A-0200 | MY25 | $283.00 | 1 |
| 12_12 | 26360-YQ2A-0000 | All MY | $36.50 | 1 |
| 12_13 | 81137-YQ2A-0000 | MY17-24 | $0.40 | 1 |
| 12_13 | 81153-NM1A-0000 | MY25 | $0.40 | 1 |
