15. Electrical - DC Converter, Light, Horn System

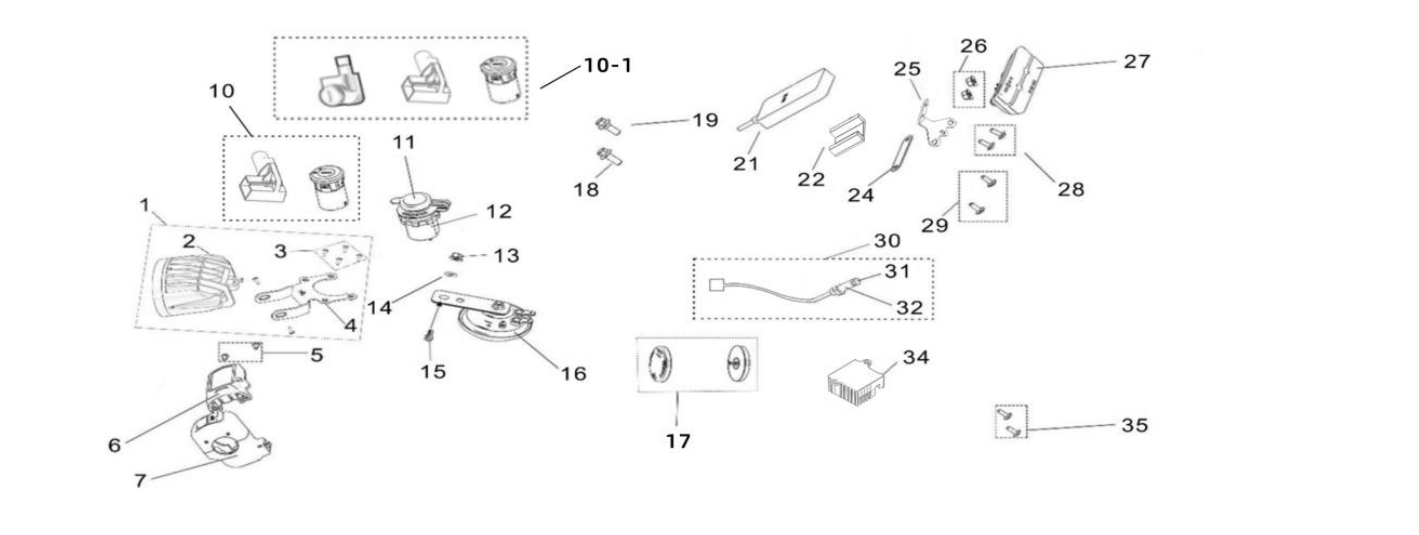

2025 Surron Light Bee X - Electrical - DC Converter, Light, Horn System Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.

FIND & SELECT YOUR PARTS
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
NO. PART # DESCRIPTION / YEAR MSRP QTY
15_01 22100-YQ2A-Z All MY $69.50 1
15_02 22100-YQ2A-0200 All MY $61.50 1
15_03 B3-002-06-016-F0 All MY $0.40 4
15_04 41330-YQ2A-0200 All MY $8.60 1
15_05 B3-006-002-F1 All MY $0.40 2
15_06 25100-YQ2A-0100 All MY $107.00 1
15_07 23200-YQ2A-0000 All MY $13.50 1
15_10 27000-YQ2A-0100 All MY2 keys, 2 locks $42.00 1
15_10-1 27000-YQ2B-0100 All MY2 keys, 3 locks $48.00 1
15_11 24601-YQ2A-0000 MY17-24 $2.00 1
15_11 24601-YQ2A-0001 MY25P/N changed $2.00 1
15_12 24600-YQ2A-0000 All MY $16.40 1
15_13 B2-006-06-F2 All MY $0.40 1
15_14 B4-001-06-F2 All MY $0.40 1
15_15 FB3-001-06-016-F0 All MYPrev. P/N B3-001-06-016-F0 $0.40 1
15_16 29310-NM1A-0000 All MY $11.50 1
15_18 B1-008-06-020-F2 All MY $0.40 1
15_19 FB01-003-06-016-F2 All MY $0.40 1
15_25 41660-YQ2A-0000 All MY $7.90 1
15_26 B2-015-06-F2 MY17-24 $0.40 2
15_26 B2-008-05-F2 MY25Compatible to old version $0.40 2
15_27 22200-YQ2A-0000 All MY $23.00 1
15_28 FB03-003-04-013-F3 All MY $0.40 2
15_30 23400-YQ2A-0000 All MY $28.50 1
15_34 21300-YQ2A-0000 All MYPrev. P/N 21300-YQ2A-0100 $27.00 1
15_35 FB03-003-04-013-F3 All MY $0.40 2
