13. Electrical - Motor

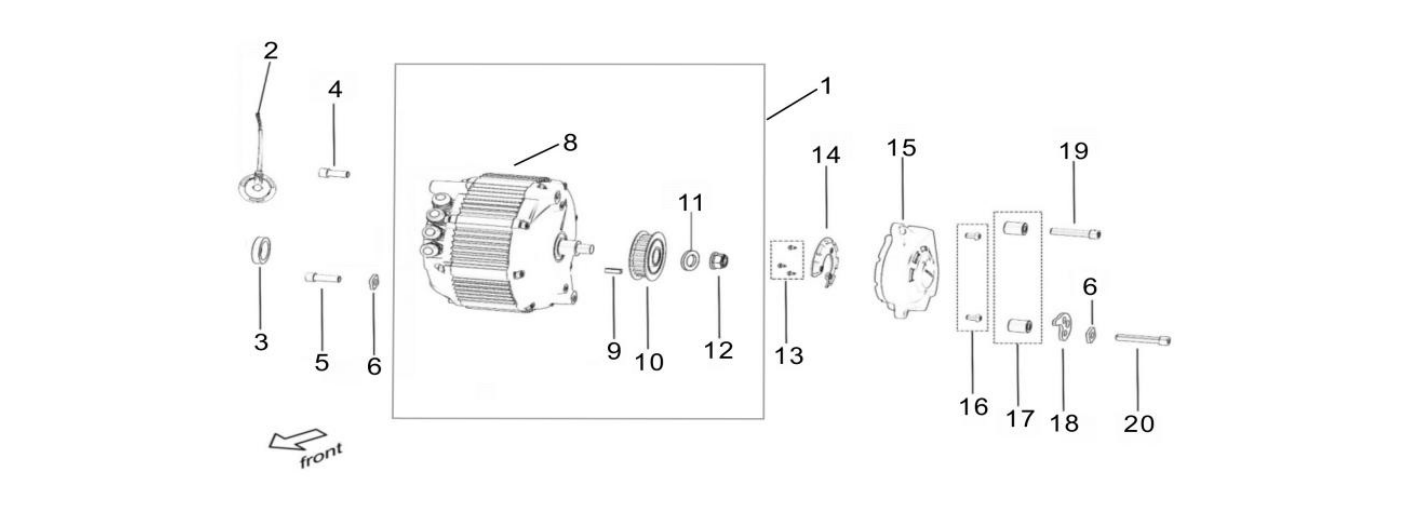

2025 Surron Light Bee X - Electrical - Motor Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 13_01 | 11100-YQ2A-Z1 | MY17-24 | $817.00 | 1 |
| 13_01 | 11100-YQ2A-Z3 | MY25 | $817.00 | 1 |
| 13_08 | 11100-YQ2A-0201 | MY17-24 | $801.00 | 1 |
| 13_08 | 11100-YQ2A-0401 | MY25Can be applied to old model but power stays at 6kW | $801.00 | 1 |
| 13_02 | 21152-YQ2A-0000 | All MY | $80.50 | 1 |
| 13_03 | B7-001-25-35-07 | All MY | $4.70 | 1 |
| 13_04 | B3-001-08-020-F0 | All MY | $0.60 | 1 |
| 13_05 | B3-001-08-025-F0 | All MY | $0.60 | 1 |
| 13_06 | 11172-YQ2A-0000 | All MY | $1.20 | 2 |
| 13_09 | B6-003-05-016 | All MY | $0.40 | 1 |
| 13_10 | 13201-YQ2A-0400 | All MYP/N change. Prev. 13201-YQ2A-0300 | $26.00 | 1 |
| 13_11 | FB05-002-23-12-1-F4 | All MYP/N change. Prev. FB05-002-23-12-1- F3 | $0.40 | 1 |
| 13_12 | B2-007-12-F2 | All MY | $0.80 | 1 |
| 13_13 | FB03-005-006-F2 | All MY | $0.40 | 3 |
| 13_14 | 32332-YQ2A-0000 | All MY | $5.80 | 1 |
| 13_15 | 32331-YQ2A-0000 | All MY | $7.50 | 1 |
| 13_16 | B3-002-06-010-F0 | All MY | $0.40 | 2 |
| 13_17 | 11216-YQ2A-0000 | All MY | $7.60 | 2 |
| 13_18 | 11171-YQ2A-0000 | All MY | $10.80 | 1 |
| 13_19 | B3-001-08-040-F0 | All MY | $1.00 | 1 |
| 13_20 | B3-001-08-045-F0 | All MY | $1.00 | 1 |
