11. Fender

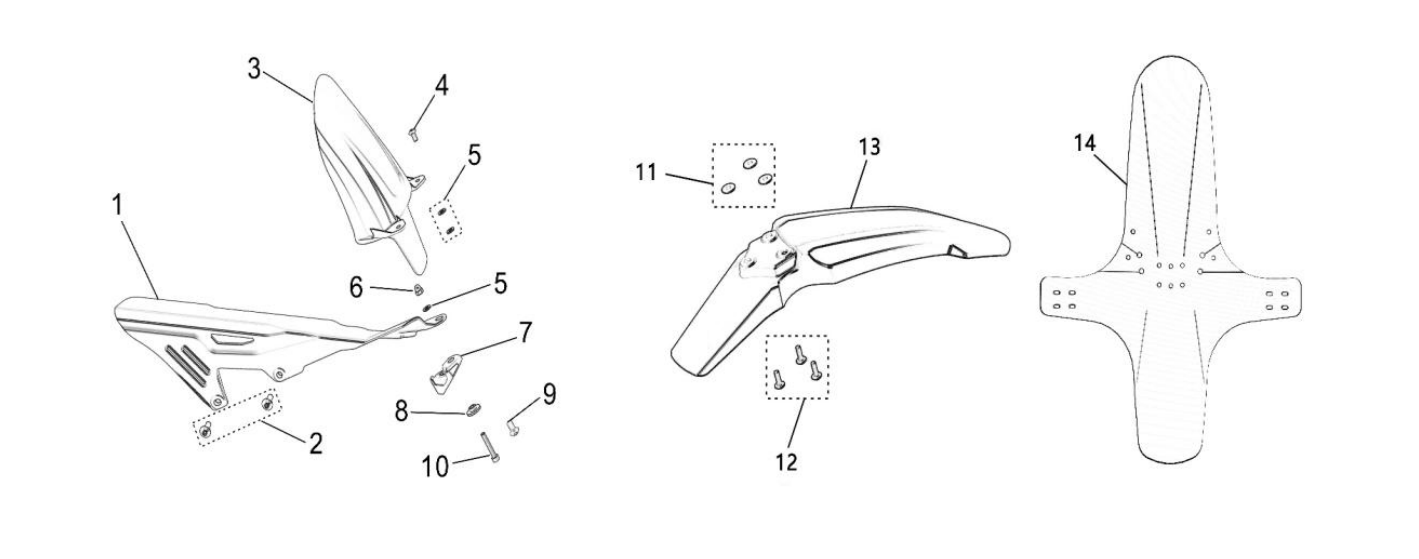

2025 Surron Light Bee X - Fender Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 11_01 | 32223-YQ2A-0000 | All MY | $19.50 | 1 |
| 11_02 | FB03-001-06-012-F0 | All MY | $0.80 | 2 |
| 11_03 | 31311-YQ1N-0000 | All MY | $19.50 | 1 |
| 11_04 | B3-002-05-010-F0 | All MY | $0.40 | 1 |
| 11_05 | B4-001-05-F0 | All MYPrev. P/N B4-001-05-F2 | $0.40 | 2 |
| 11_06 | B2-018-05-010-F0 | All MY | $0.40 | 1 |
| 11_07 | 61237-YQ2A-0000 | All MY | $4.40 | 1 |
| 11_08 | 61238-YQ2A-0000 | All MY | $1.40 | 1 |
| 11_09 | B3-002-05-012-F0 | All MYUse when chain guide is not installed | $0.40 | 1 |
| 11_10 | B3-001-05-030-F0 | All MYUse when chain guide is installed | $0.40 | 1 |
| 11_11 | 31218-YQ2B-0000 | All MY | $0.40 | 3 |
| 11_12 | FB03-001-06-016-F0 | All MY | $0.40 | 3 |
| 11_13 | 31211-YQ2B-0000 | MY22-25 | $25.00 | 1 |
| 11_14 | 31211-YQ2A-0100 | MY17-21 | $28.00 | 1 |
