2. Frame Accessories (1)

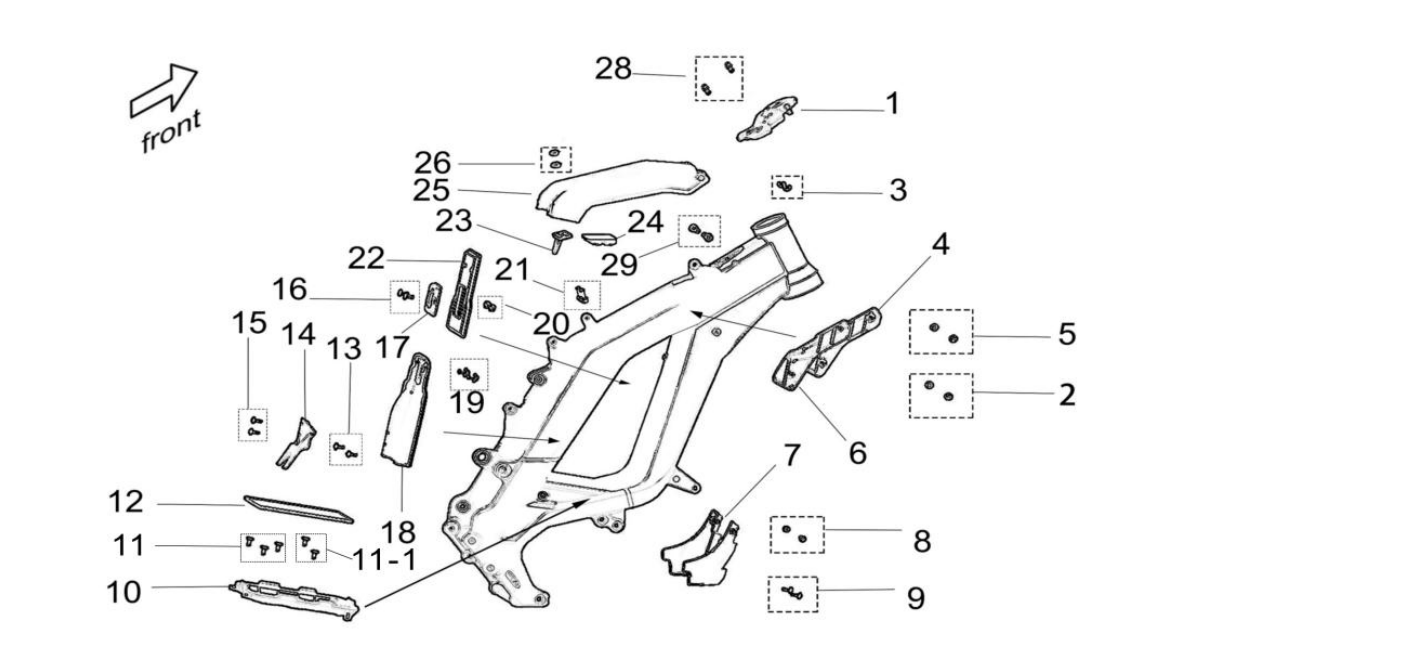

2025 Surron Light Bee X - Frame Accessories (1) Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.

FIND & SELECT YOUR PARTS
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
NO. PART # DESCRIPTION / YEAR MSRP QTY
2_01 32340-YQ2A-0000 All MY $5.00 1
2_02 B3-003-05-010-F0 All MY $0.40 2
2_03 B4-007-05-F1 All MY $0.40 2
2_04 32356-YQ2A-0000 All MY $5.40 1
2_05 B3-003-05-010-F0 All MY $0.40 2
2_06 32357-YQ2A-0000 All MY $5.40 1
2_07 32361-YQ2A-0000 All MY $17.00 1
2_08 B3-002-06-010-F0 All MY $0.40 2
2_09 FB03-003-04-013-F3 All MY $0.40 2
2_10 32358-YQ2A-0000 All MY $28.00 1
2_11 B3-003-05-012-F0 All MY $0.40 3
2_11-1 B3-003-05-010-F0 All MY $0.40 2
2_12 26343-YQ2A-0000 All MY $3.00 1
2_13 FB03-003-04-013-F3 All MY $0.40 2
2_14 32365-YQ2A-0000 All MY $6.60 1
2_15 FB03-003-04-013-F3 All MY $0.40 2
2_16 B3-003-05-012-F0 All MY $0.40 2
2_17 32353-YQ2A-0000 All MY $5.50 1
2_18 32355-YQ2A-0000 All MY $19.50 1
2_19 FB03-001-06-012-F0 All MY $0.80 2
2_20 B2-012-05-F2 All MY $0.40 2
2_21 B3-002-06-012-F0 All MY $0.40 2
2_22 26341-YQ2A-0000 All MY $3.00 1
2_23 26290-YQ2A-0000 All MY $4.80 1
2_24 32233-YQ2A-0000 All MY $8.60 1
2_25 32231-YQ2A-0000 All MY $25.00 1
2_26 B2-001-06-F2 All MY $0.40 2
2_28 B3-002-06-012-F0 All MY $0.40 2
2_29 41762-YQ2A-0000 All MY $3.00 2
