1. Frame / Subframe

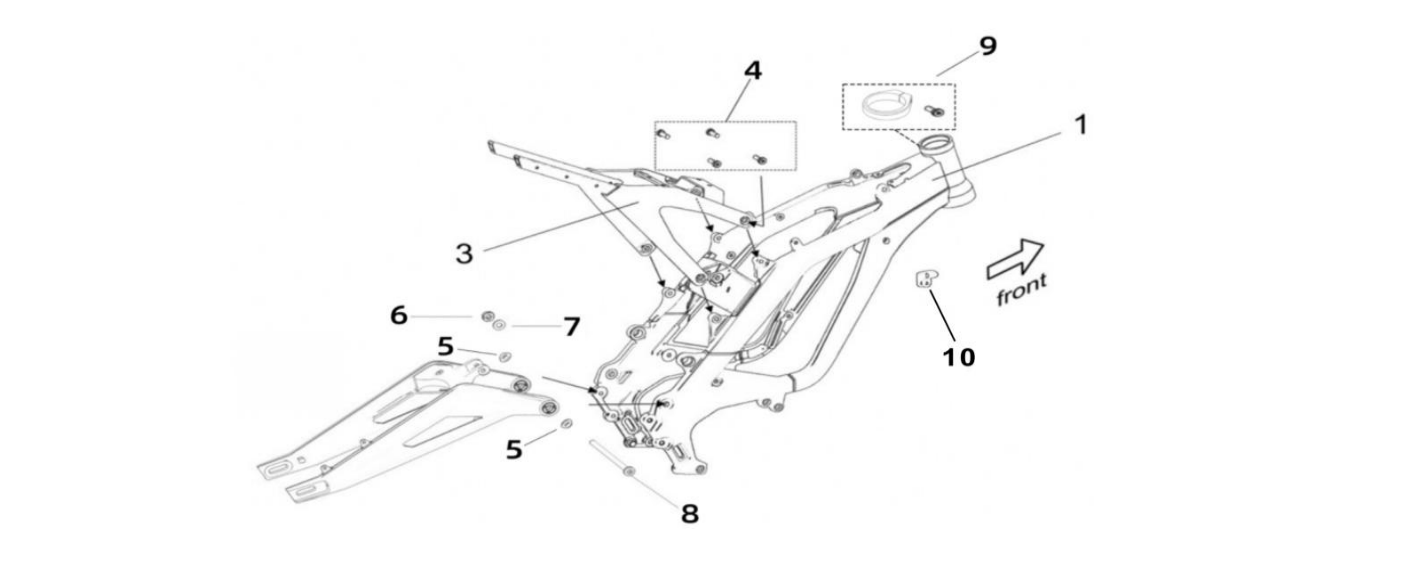

2025 Surron Light Bee X - Frame / Subframe Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 1_01 | 41100-YQ2B-0000-Y19 | MY17-24Replacement only. Not for sale | $890.00 | 1 |
| 1_01 | 41100-YQ2B-0000-Y4 | MY17-24Replacement only. Not for sale | $890.00 | 1 |
| 1_01 | 41100-YQ2B-0000-Y11 | MY17-24Replacement only. Not for sale | $890.00 | 1 |
| 1_01 | 41100-YQ2B-0000-Y16 | MY17-24Replacement only. Not for sale | $890.00 | 1 |
| 1_01 | 41100-YQ2B-0000-Y19 | MY25Replacement only. Not for sale | $890.00 | 1 |
| 1_03 | 41520-YQ2A-0000 | All MY | $273.30 | 1 |
| 1_04 | B1-009-08-020-F0 | All MY | $0.60 | 4 |
| 1_05 | 41151-YQ2A-0000 | All MY | $2.00 | 2 |
| 1_06 | B2-013-10-F0 | All MY | $4.50 | 1 |
| 1_07 | B4-001-10-F2 | All MY | $0.40 | 1 |
| 1_08 | 61260-YQ2A-0000 | All MY | $22.00 | 1 |
| 1_09 | 41115-YQ2A-Z | MY17-24 | $38.50 | 1 |
| 1_10 | 81137-YQ2A-0000 | All MY | $0.40 | 1 |
