17. Front Wheel System

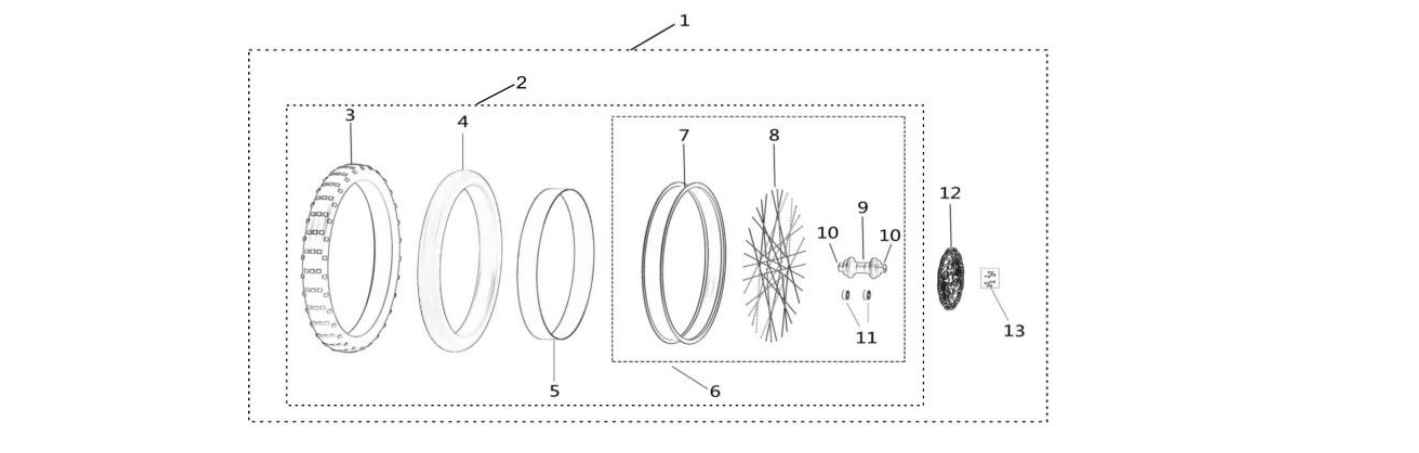

2025 Surron Light Bee X - Front Wheel System Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
17_01	51200-YQ2A-Z1	Front Wheel Assy.(incl. Break Disc, Offroad Tire)+ ADDAll MY	$268.00	1
17_02	51270-YQ2A-Z1	Front Wheel Assy. + Offroad Tire+ ADDAll MYP/N change. Prev. 51200-YQ2A-0000	$298.00	1
17_03	51231-YQ2A-0000	Front Offroad Tire+ ADDAll MY	$102.00	1
17_04	51232-YQ2A-0000	Inner Tube (2.00/2.25-19)+ ADDAll MY	$18.00	1
17_05	51266-YQ2A-0000	Rim Band(19-20mm)+ ADDAll MY	$7.20	1
17_06	51270-YQ2A-0000	Front Rim Assy.+ ADDAll MY	$198.00	1
17_07	51271-YQ2A-0100	Front Rim (19*1.4-36-6.5mm)+ ADDAll MY	$105.00	1
17_08	51290-YQ2A-0100	Front Wheel Inside Spokes (216×8)+ ADDAll MY	$1.60	18
17_08	51290-YQ2A-0300	Front Wheel Outside Spokes (216×8.2)+ ADDAll MY	$1.60	18
17_09	51210-YQ2A-0000	Front Wheel Hub Assy.+ ADDAll MY	$124.00	1
17_10	51261-YQ2A-0000	Front Wheel Bush+ ADDAll MY	$7.60	2
17_11	Z-6804-32-20-07	Front Wheel Bearing(Φ20*Φ32*7)+ ADDAll MY	$11.80	2
17_12	52171-YQ2A-0001	Front Brake Disc+ ADDAll MY	$24.50	1
17_13	FB03-006-05-010-F3	Screw FB03006 (M5*10)+ ADDAll MY	$0.40	6
