8. Linkage

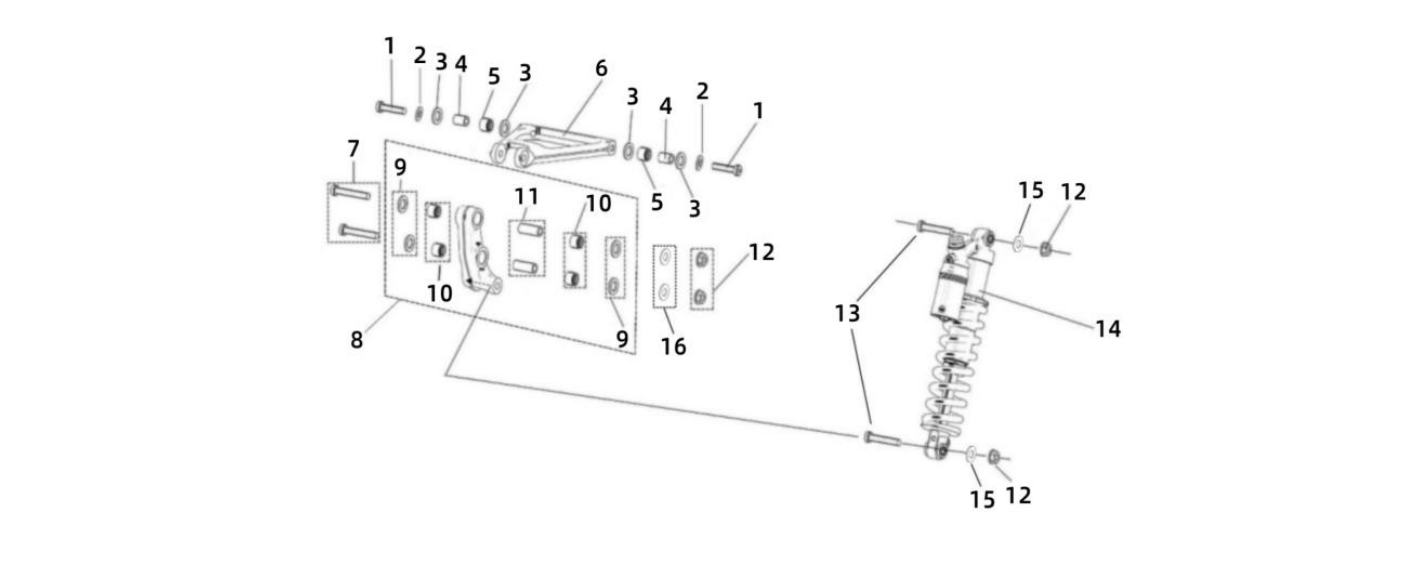

2025 Surron Light Bee X - Linkage Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.

FIND & SELECT YOUR PARTS
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
NO. PART # DESCRIPTION / YEAR MSRP QTY
8_01 B3-001-08-035-F7 All MY $0.80 2
8_02 B4-001-08-F2 All MY $0.40 2
8_03 55163-YQ2A-0000 All MY $0.40 2
8_04 55162-YQ2A-0000 All MY $3.40 2
8_05 Z-HK1212-16-12-12 All MY $1.80 2
8_06 55148-YQ2A-0000 All MY $66.50 1
8_07 FB03-018-08-056-043-F7 All MYP/N change. Prev. B3-001-08-055-F7 $1.20 1
8_07 FB03-018-08-056-043-F7 All MYP/N change. Prev. B3-001-08-055-F7 $0.80 1
8_08 55140-YQ2A-0001 All MY $66.50 1
8_9 B7-001-12-16-03 All MYP/N change. Prev. B7-001-12-16-3 $0.80 4
8_10 Z-HK1210-16-12-10 All MYP/N change. Prev. Z-HK1212-16-12-12 $1.80 4
8_11 55142-YQ2A-0000 All MY $2.20 2
8_12 B2-006-08-F2 All MY $0.40 2
8_13 FB03-018-08-050-037-F7 All MYP/N change. Prev. wrong $0.80 2
8_14 55110-YQ2A-0500 MY17-24 $263.00 1
8_14 55110-YQ2A-0600 MY25Compatible to old version $263.00 1
8_15 B4-001-08-F2 All MY $0.80 1
