9. Primary Drive System

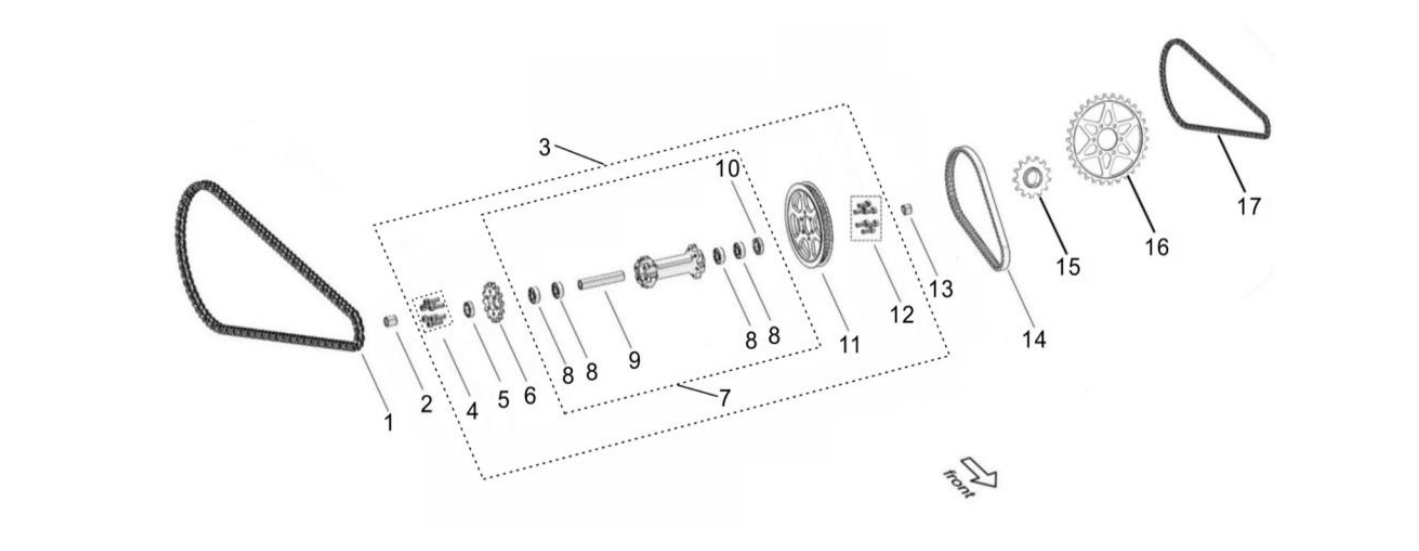

2025 Surron Light Bee X - Primary Drive System Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 9_01 | 13114-YQ2A-0600 | All MY | $47.00 | 1 |
| 9_01 | 13114-YQ2A-0700 | All MY | $50.00 | 1 |
| 9_02 | 61234-YQ2A-0001 | All MY | $2.60 | 1 |
| 9_03 | 61270-YQ2A-Z1 | MY17-24 | $170.50 | 1 |
| 9_03 | 61270-YQ2A-Z2 | MY25 | $170.50 | 1 |
| 9_04 | B3-001-06-025-F0 | All MY | $0.80 | 6 |
| 9_05 | B7-001-15-24-07 | All MY | $3.00 | 1 |
| 9_06 | 13105-YQ2A-0000 | All MY | $16.00 | 1 |
| 9_07 | 61280-YQ2A-0001 | All MY | $78.50 | 1 |
| 9_08 | Z-6000-2Z-26-10-08 | All MY | $13.20 | 4 |
| 9_09 | 61282-YQ2A-0000 | All MY | $2.60 | 1 |
| 9_10 | B7-001-15-26-06 | All MYP/N change. Prev. B7-001-15-26-6 | $2.80 | 1 |
| 9_11 | 13202-YQ2A-0400 | MY17-24P/N change. Prev. 13202-YQ2A-0200 | $78.00 | 1 |
| 9_11 | 13202-YQ2A-0500 | MY25Must change both pulley and belt if applying to old versions. | $80.00 | 1 |
| 9_12 | B3-001-06-016-F0 | All MY | $0.40 | 6 |
| 9_13 | 61233-YQ2A-0001 | All MY | $8.00 | 1 |
| 9_14 | 13111-YQ2A-0100 | MY17-24 | $77.00 | 1 |
| 9_14 | 13111-YQ2A-0400 | MY17-24 | $77.00 | 1 |
| 9_14 | 13111-YQ2A-0500 | MY25 | $77.00 | 1 |
| 9_15 | 13211-YQ2A-0000 | All MY | $20.00 | 1 |
| 9_16 | 13212-YQ2A-0000 | All MY | $44.00 | 1 |
| 9_17 | 13117-YQ2A-0000 | All MY | $10.00 | 1 |
