6. Seat

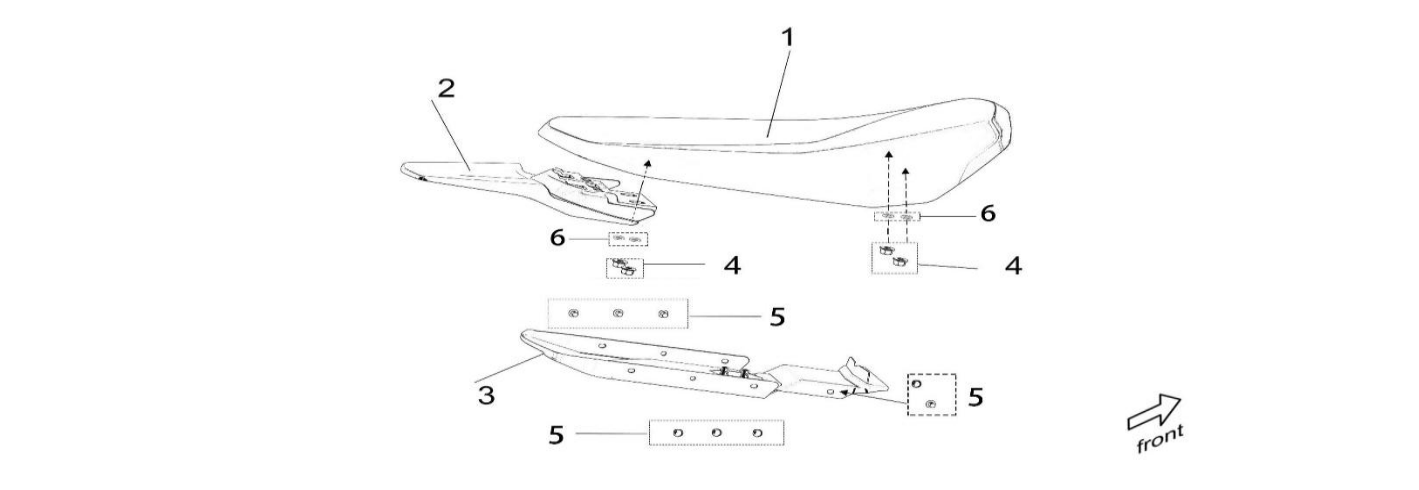

2025 Surron Light Bee X - Seat Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 6_01 | 32300-YQ2F-0000 | MY17-24 | $43.00 | 1 |
| 6_01 | 32300-Y029A-0000 | MY25Compatible to old version | $43.00 | 1 |
| 6_02 | 31321-YQ2A-0000 | All MY | $10.80 | 1 |
| 6_03 | 31340-YQ2A-0000 | All MY | $17.50 | 1 |
| 6_04 | B2-015-06-F2 | All MY | $0.40 | 4 |
| 6_05 | B5-004-R5075 | All MY | $0.40 | 8 |
| 6_06 | B4-010-06-F2 | All MYP/N change. Prev. B4-010-06-F1 | $0.40 | 4 |
