10. Steering System / Front Fork / Handlebar

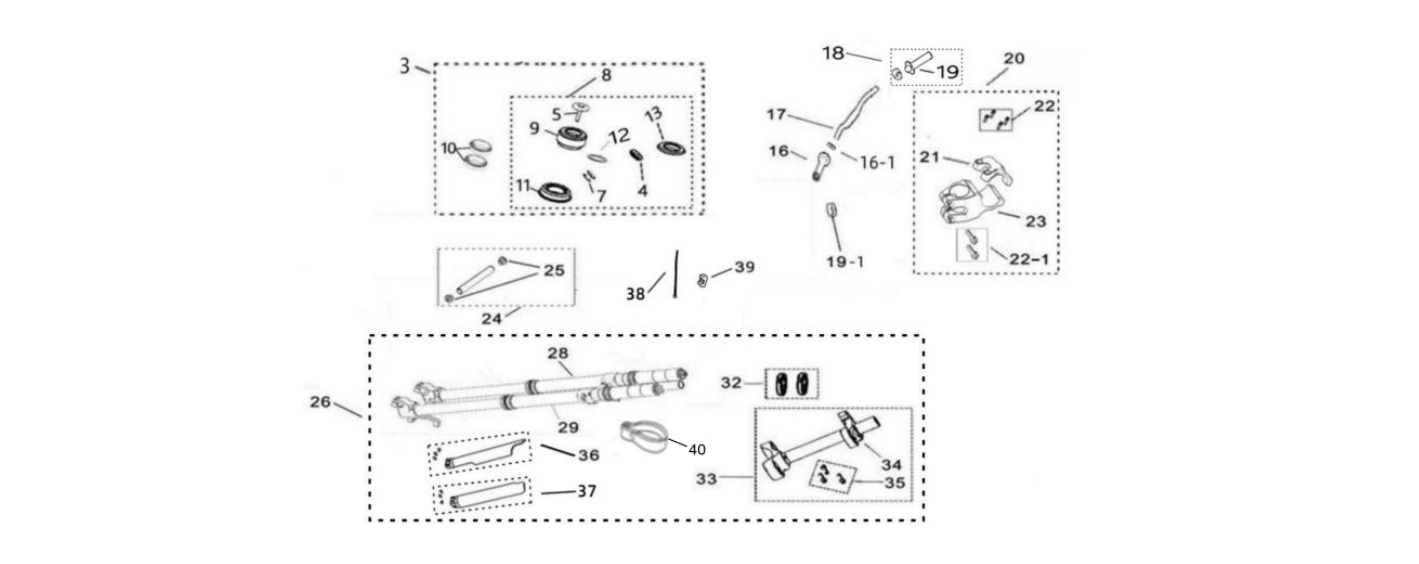

2025 Surron Light Bee X - Steering System / Front Fork / Handlebar Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 10_03 | 51180-YQ2A-Z1 | All MY | $68.00 | 1 |
| 10_08 | 51180-YQ2A-0200 | All MY | $37.00 | 1 |
| 10_10 | Z-32906X-47-30-12 | All MY | $16.00 | 2 |
| 10_16 | 23810-YQ1A-0200 | MY17-24 | $10.00 | 1 |
| 10_16 | 23810-YQ1A-0100 | MY17-24 | $10.00 | 1 |
| 10_16 | 23810-YQ5A-0000 | MY25 | $17.00 | 1 |
| 10_16-1 | 51155-YQ2A-0000 | MY17-24 | $0.40 | 2 |
| 10_16-1 | 23816-YQ5A-0000 | MY25 | $1.70 | 1 |
| 10_17 | 51150-YQ2A-0100 | MY17-24 | $38.00 | 1 |
| 10_17 | 51150-YQ2A-0101 | MY25Compatible to old version | $38.00 | 1 |
| 10_18 | 23910-YQ1A-0100 | MY17-24 | $49.00 | 1 |
| 10_18 | 23910-Y029A-0000 | MY25NOT compatible to old version | $68.00 | 1 |
| 10_19 | 23820-YQ1A-0200 | MY17-24 | $10.00 | 1 |
| 10_19 | 23820-YQ1A-0100 | MY17-24 | $10.00 | 1 |
| 10_19 | 23820-YQ5A-0000 | MY25 | $17.00 | 1 |
| 10_19_1 | 51195-YQ2A-0000 | All MY | $3.80 | 1 |
| 10_20 | 51190-YQ2A-Z | MY17-24 | $65.00 | 1 |
| 10_20 | 51190-YQ2A-Z1 | MY25 | $65.00 | 1 |
| 10_21 | 51164-YQ2A-0000 | MY17-24 | $15.50 | 1 |
| 10_21 | 51164-YQ2A-0001 | MY25 | $15.50 | 1 |
| 10_22 | FB03-009-05-022-F4 | All MYP/N change. Prev. FB03-009-05-22-F4 | $0.80 | 4 |
| 10_22-1 | B3-001-06-020-F0 | All MY | $0.40 | 2 |
| 10_23 | 51162-YQ2A-0100 | MY25Required quantity is not listed; request starts at 1 for confirmation. | Call for price | Not listed |
| 10_24 | 51250-YQ1A-0000 | All MY | $59.00 | 1 |
| 10_25 | 51263-YQ1A-0000 | All MY | $9.20 | 2 |
| 10_26 | 51000-YQ2B-0200 | MY17-24 | $763.00 | 1 |
| 10_26 | 51000-Y029A-0000 | MY25Compatible to old version | $763.00 | 1 |
| 10_28 | 54200-YQ2B-0200 | MY17-24 | $454.00 | 1 |
| 10_28 | 54200-Y029A-0000 | MY25Compatible to old version | $454.00 | 1 |
| 10_29 | 54100-YQ2B-0200 | MY17-24 | $454.00 | 1 |
| 10_29 | 54100-Y029A-0000 | MY25Compatible to old version | $454.00 | 1 |
| 10_32 | 54320-YQ2B-0200 | All MY | $47.00 | 2 |
| 10_33 | 51110-YQ2B-0200 | All MY | $183.00 | 1 |
| 10_34 | 51121-YQ2B-0200 | All MY | $76.00 | 1 |
| 10_36 | 32280-YQ2B-0200 | All MY | $26.00 | 1 |
| 10_37 | 32270-YQ2B-0200 | All MY | $26.00 | 1 |
| 10_38 | 95206 | MY25 | $1.20 | 1 |
| 10_39 | 52176-Y028A-0000 | MY25 | $2.00 | 1 |
| 10_40 | 51136-YQ2B-0000 | MY17-24 | $9.20 | 1 |
