7. Swingarm / Midshaft

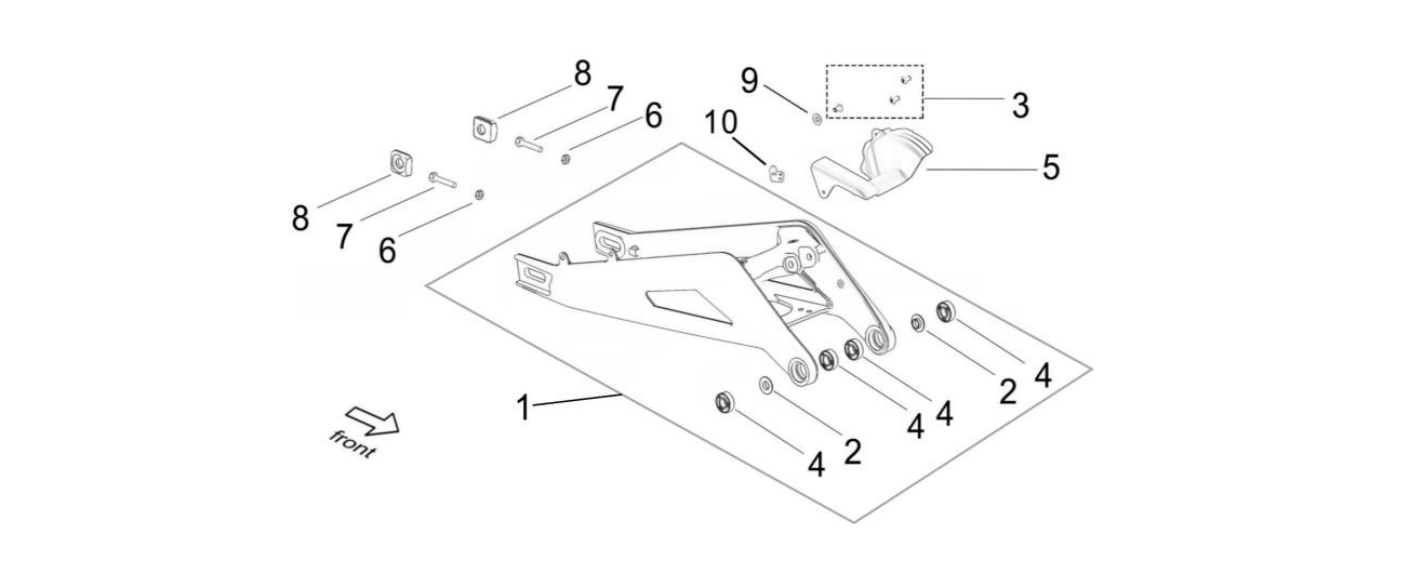

2025 Surron Light Bee X - Swingarm / Midshaft Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.

FIND & SELECT YOUR PARTS
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
NO. PART # DESCRIPTION / YEAR MSRP QTY
7_01 61000-YQ2A-0000 All MY $355.00 1
7_01 61000-YQ2A-0000-Y4 All MY $425.00 1
7_01 61000-YQ2A-0000-Y16 MY23-25 $425.00 1
7_01 61000-YQ2A-0000-Y11 All MY $425.00 1
7_01 61000-YQ2A-0000-Y19 MY25 $425.00 1
7_02 FB05-005-10-15-22-2 All MY $0.40 2
7_03 B3-002-05-010-F0 All MY $0.40 3
7_04 Z-6000-2Z-26-10-08 All MY $13.50 4
7_05 32120-YQ2A-0000 All MY $14.50 1
7_06 B2-001-06-F2 All MY $0.40 2
7_07 B1-004-06-035-F0 All MY $0.40 2
7_08 61210-YQ2A-0000 All MY $11.50 2
7_09 B4-001-06-F2 All MY $0.40 1
7_10 81138-YQ2A-0000 All MY $0.40 1
