24. Electrical - Controller

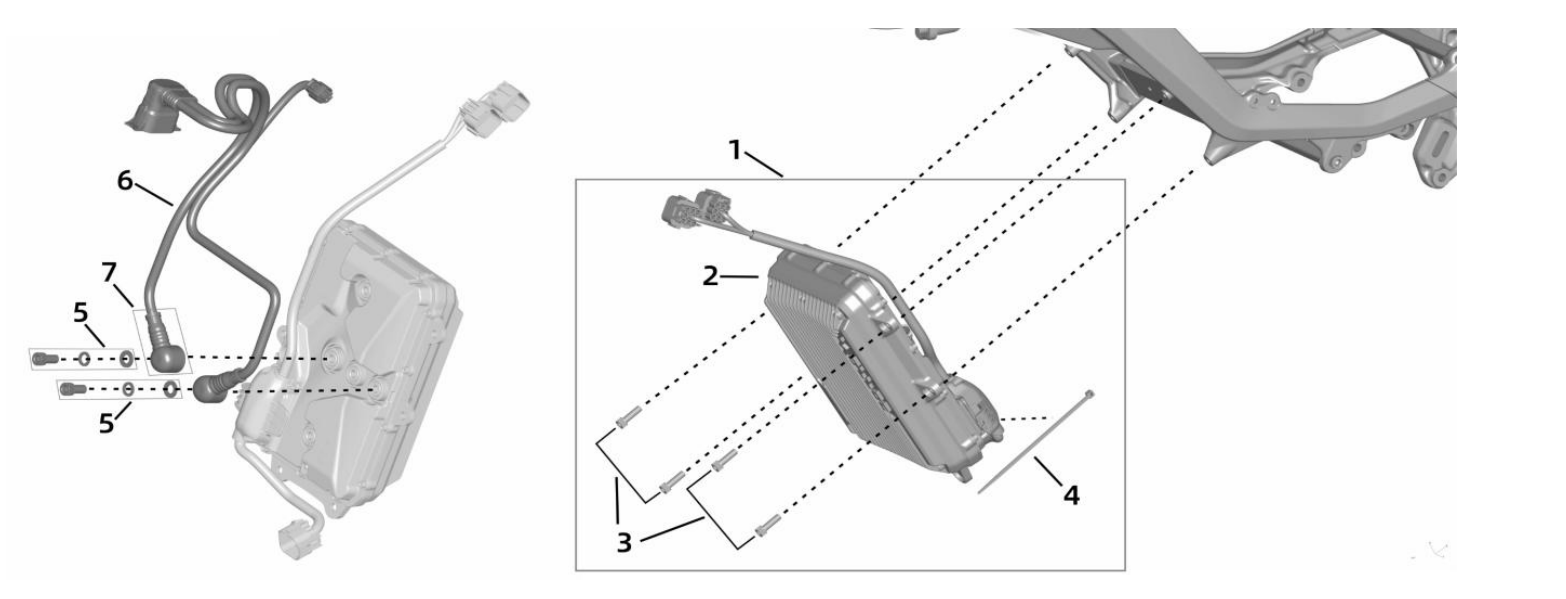

2025 Surron Ultra Bee - Electrical - Controller Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 24_01 | 21100-YQ5A-Z1 | MY23-24 | $1,045.00 | 1 |
| 24_01 | 21100-YQ5A-Z3 | MY25NOT compatible to MY23-24 | $1,045.00 | 1 |
| 24_02 | 21100-YQ5A-11B0 | MY23-24P/N changed. Prev. 21100-YQ5A-10B0 | $1,044.00 | 1 |
| 24_02 | 21100-YQ5A-22B0 | MY25NOT compatible to MY23-24 | $1,044.00 | 1 |
| 24_03 | B3-001-06-020-F0 | ALL MY | $0.40 | 4 |
| 24_04 | 81147-YQ2A-0000 | ALL MY | $0.40 | 1 |
| 24_05 | B8-001-08-016-F0 | ALL MY | $0.40 | 2 |
| 24_06 | 24110-YQ5A-0000 | ALL MY | $105.00 | 1 |
| 24_07 | 21144-YQ5A-0000 | ALL MY | $2.10 | 2 |
