21. Electrical - Motor (1)

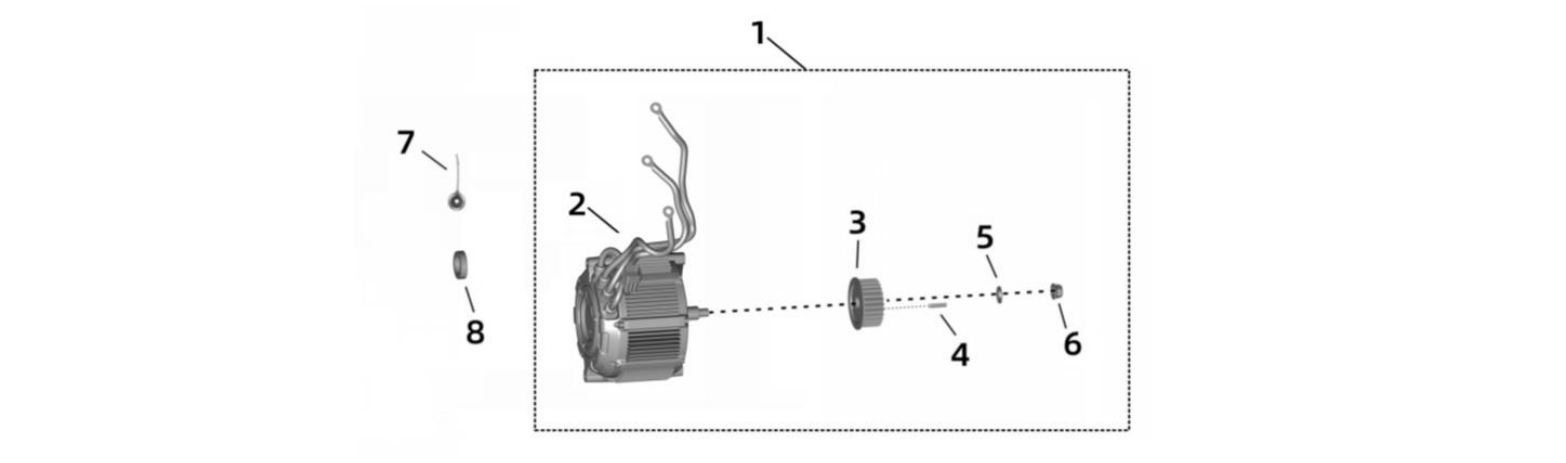

2025 Surron Ultra Bee - Electrical - Motor (1) Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 21_01 | 11100-YQ5A-Z1 | MY23 | $1,237.00 | 1 |
| 21_01 | 11100-YQ5A-Z2 | MY24-25NOT compatible to MY23 | $1,500.00 | 1 |
| 21_02 | 11100-YQ5A-00B0 | MY23 | $1,143.00 | 1 |
| 21_02 | 11100-YQ5A-11B0 | MY24-25NOT compatible to MY23 | $1,143.00 | 1 |
| 21_03 | 13201-YQ5A-0000 | ALL MY | $33.00 | 1 |
| 21_04 | B6-003-05-025 | ALL MY | $0.40 | 1 |
| 21_05 | FB05-002-23-12-1-F4 | ALL MYP/N changed. Prev. FB05-002-23-12-1-F3 | $0.40 | 1 |
| 21_06 | B2-007-12-F2 | ALL MY | $0.80 | 1 |
| 21_07 | 21157-YQ5A-0000 | ALL MY | $68.00 | 1 |
| 21_08 | B7-001-25-35-07 | ALL MYP/N changed. Prev. B7-001-24-35-8 | $9.50 | 1 |
