34. Handguard

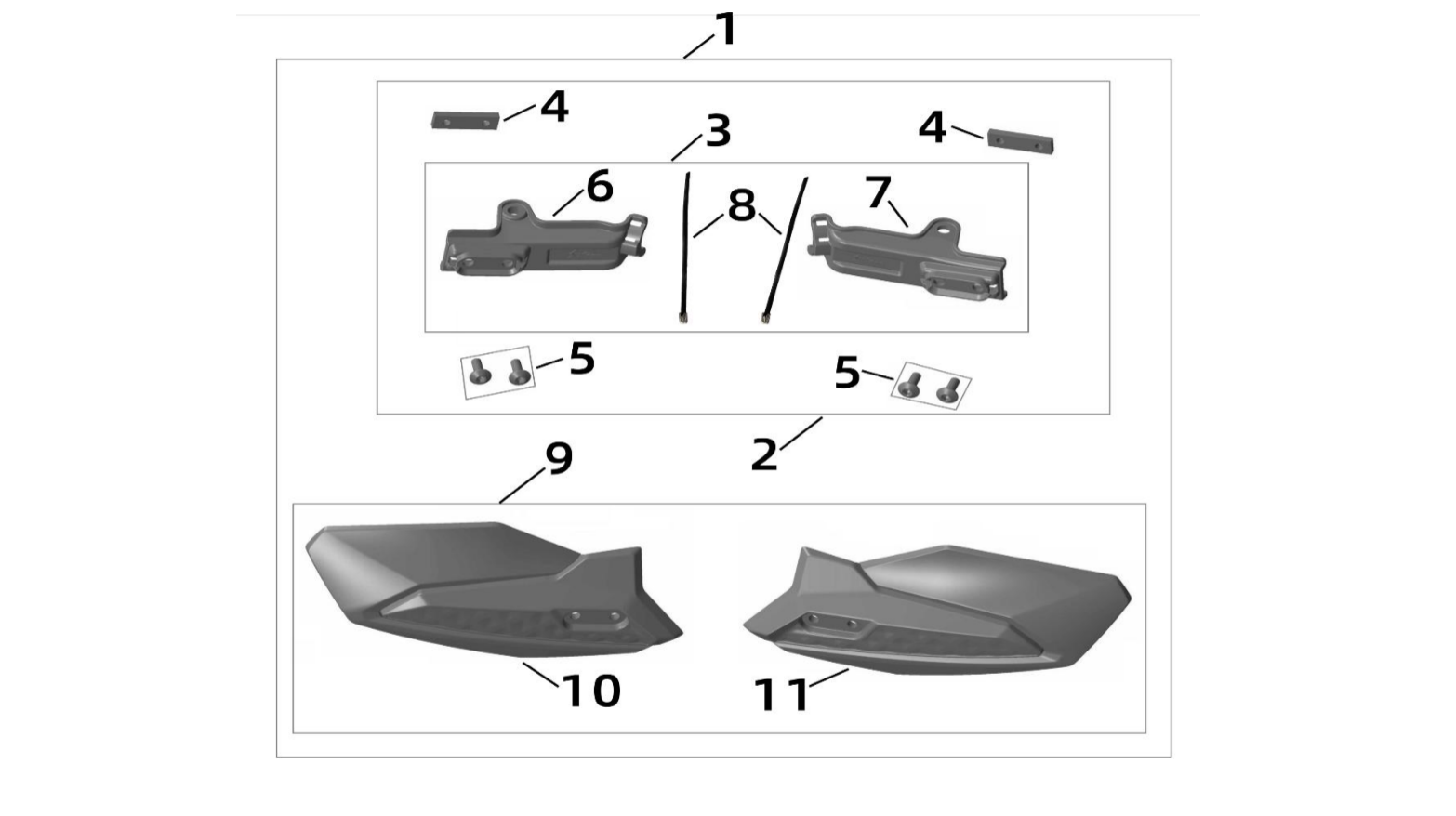

2025 Surron Ultra Bee - Handguard Parts Diagram
Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.
Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.
DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.
QTY: Required assembly quantity listed in the catalog.
| NO. | PART # | DESCRIPTION / YEAR | MSRP | QTY |
|---|---|---|---|---|
| 34_01 | 32380-YQ5A-Z0 | MY23-24 | $52.00 | 1 |
| 34_01 | 32380-YQ5A-Z0-Y4 | ALL MY | $52.00 | 1 |
| 34_02 | 32380-YQ5A-Z1 | ALL MY | $19.00 | 1 |
| 34_03 | 32382-YQ5A-Z1 | ALL MY | $14.00 | 1 |
| 34_04 | 32385-YQ5A-0000 | ALL MY | $2.10 | 2 |
| 34_05 | FB03-001-06-016-F0 | ALL MY | $0.40 | 4 |
| 34_06 | 32392-YQ5A-0000 | ALL MY | $6.60 | 1 |
| 34_07 | 32382-YQ5A-0000 | ALL MY | $6.60 | 1 |
| 34_08 | 95206 | ALL MY | $1.20 | 2 |
| 34_09 | 32381-YQ5A-Z1 | MY23-24 | $33.00 | 1 |
| 34_09 | 32381-YQ5A-Z1-Y4 | ALL MY | $33.00 | 1 |
| 34_10 | 32391-YQ5A-0100 | MY23-24 | $17.00 | 1 |
| 34_10 | 32391-YQ5A-0100-Y4 | ALL MY | $17.00 | 1 |
| 34_11 | 32381-YQ5A-0100 | MY23-24 | $17.00 | 1 |
| 34_11 | 32381-YQ5A-0100-Y4 | ALL MY | $17.00 | 1 |
