17. Triangular Cantilever Assy.

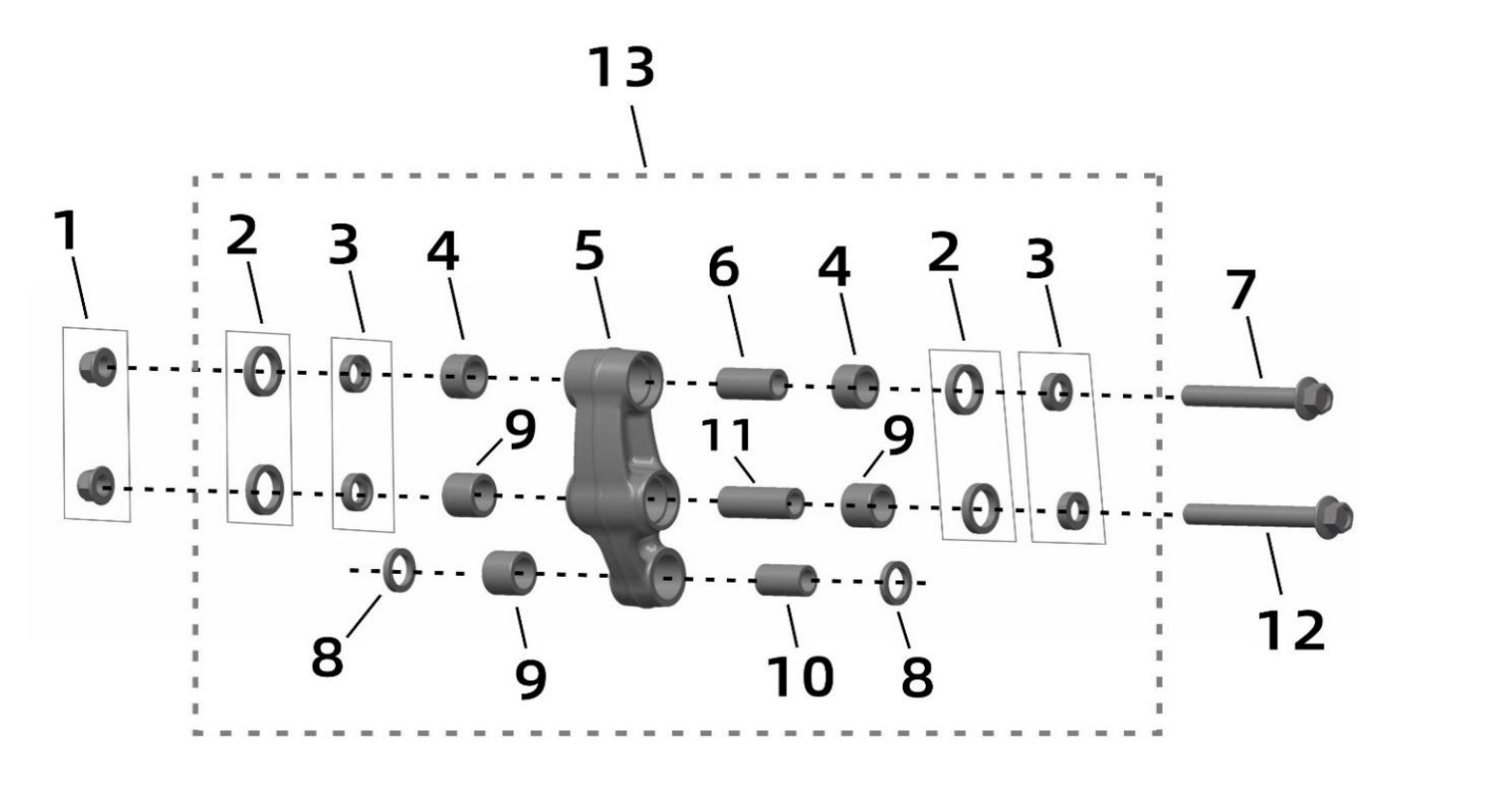

2025 Surron Ultra Bee - Triangular Cantilever Assy. Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
17_01	B2-007-10-F2	Nut B2007 (M10*1.25)+ ADDALL MY	$0.40	2
17_02	B7-001-18-24-04	Seal Ring B7001 d1824+ ADDALL MY	$5.20	4
17_03	55142-YQ5A-0000	Seal Triangular Cantilever+ ADDALL MY	$5.20	4
17_04	Z-HK1512-21-15-12	Bearing ZHK1512 d1521+ ADDALL MY	$15.00	2
17_05	55141-YQ5A-0000	Triangular Cantilever+ ADDALL MY	$35.00	1
17_06	55144-YQ5A-0000	Triangular Cantilever Inner Bushing 2+ ADDALL MY	$3.80	1
17_07	55152-YQ5A-0000	Top Triangular Cantilever Axle+ ADDALL MY	$3.10	1
17_08	B7-001-15-21-03	Seal Ring B7001 d1521+ ADDALL MY	$5.20	2
17_09	Z-HK1516-21-15-16	Bearing ZHK1516 d1521+ ADDALL MY	$8.70	3
17_10	55145-YQ5A-0000	Triangular Cantilever Inner Bushing 3+ ADDALL MY	$3.80	1
17_11	55143-YQ5A-0000	Triangular Cantilever Inner Bushing 1+ ADDALL MY	$3.80	1
17_12	55151-YQ5A-0000	Mid. Triangular Cantilever Axle+ ADDALL MY	$3.20	1
17_13	55140-YQ5A-0000	Triangular Cantilever Assy.+ ADDALL MY	$126.00	1
