42. Wheel - Other Parts

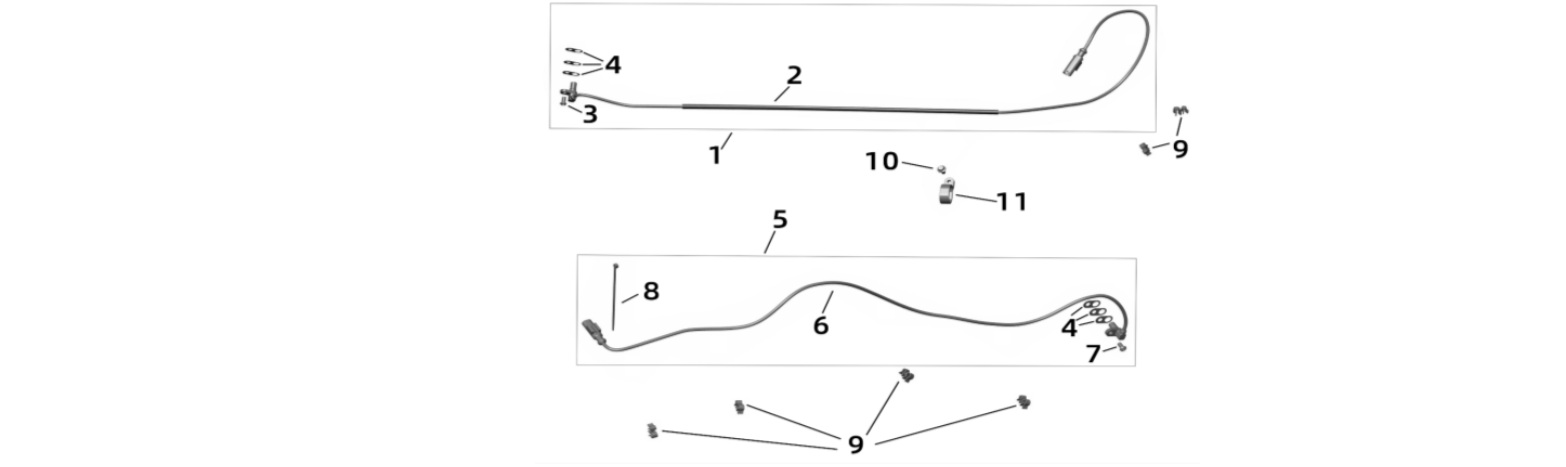

2025 Surron Ultra Bee - Wheel - Other Parts Parts Diagram

Find your part number in the diagram, then click its Description to add or remove it from your Parts Request.

Catalog version 032825 includes 2025 and earlier-year variants. Match the model year shown on each row. MSRP is per part; pricing and availability are subject to confirmation.

Click diagram to enlarge

FIND & SELECT YOUR PARTS

DESCRIPTION: Click to add/remove from your Parts Request.
QTY: Required assembly quantity listed in the catalog.

NO.	PART #	DESCRIPTION / YEAR	MSRP	QTY
42_01	25310-YQ5A-Z	Front Wheel Speed Sensor CPL.+ ADDALL MY	$54.00	1
42_02	25310-YQ5A-0000	Front Wheel Speed Sensor+ ADDALL MY	$53.50	1
42_03	B3-002-06-016-F0	Screw B3002 (M6*16)+ ADDALL MY	$0.40	1
42_04	41441-YS1A-0000	Sensor Washer+ ADDALL MY	$0.40	6
42_05	25410-YQ5A-Z	Rear Wheel Speed Sensor CPL.+ ADDALL MY	$55.00	1
42_06	25410-YQ5A-0000	Rear Wheel Speed Sensor+ ADDALL MY	$55.00	1
42_07	B3-002-06-016-F0	Screw B3002 (M6*16)+ ADDALL MY	$0.40	1
42_08	81147-YQ2A-0000	Cable Tie 36150+ ADDALL MY	$0.40	1
42_09	98402	Nylon Clip+ ADDALL MY	$0.40	6
42_10	B1-008-06-016-F2	Screw B1008 (M6*16)+ ADDALL MY	$0.40	1
42_11	52176-YS1A-0000	Front Brake Hose Holder+ ADDALL MY	$2.10	1
