Cylinder Head
All 2026 SSR SR125R schematics

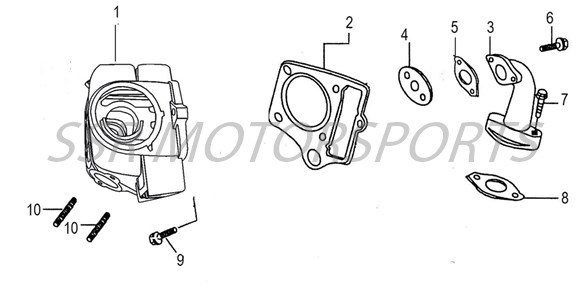

2026 SSR SR125R - Cylinder Head Parts Diagram
Factory source: the combined 2025-2026 SSR SR125R catalog. This page presents the shared factory listing for 2026.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A03286-09-00 | CYLINDER HEAD NO VALVES+ ADD | $78.80 | 1 |
| 2 | A00327-13-00 | CYLINDER HEAD GASKET+ ADD | $10.50 | 1 |
| 3 | A00376-14-00 | INTAKE MANIFOLD 56-2 / ZL+ ADD | $42.00 | 1 |
| 4 | A00377-14-00 | INTAKE INSULATOR Φ28 5MM+ ADD | $8.80 | 1 |
| 5 | A00328-13-00 | CARBURETOR GASKET+ ADD | $4.40 | 1 |
| 6 | A00424-19-08 | CASE FLANGE BOLT M6X32+ ADD | $2.00 | 2 |
| 7 | A00419-19-08 | CASE FLANGE BOLT M6X20+ ADD | $2.00 | 2 |
| 8 | A00378-14-00 | INTAKE MANIFOLD GASKET+ ADD | $4.40 | 1 |
| 9 | A00002-19-03 | BOLT M6X23 - HEX / PHILLIPS+ ADD | $2.00 | 1 |
| 10 | A00019-19-04 | STUD M6x38+ ADD | $2.00 | 2 |
