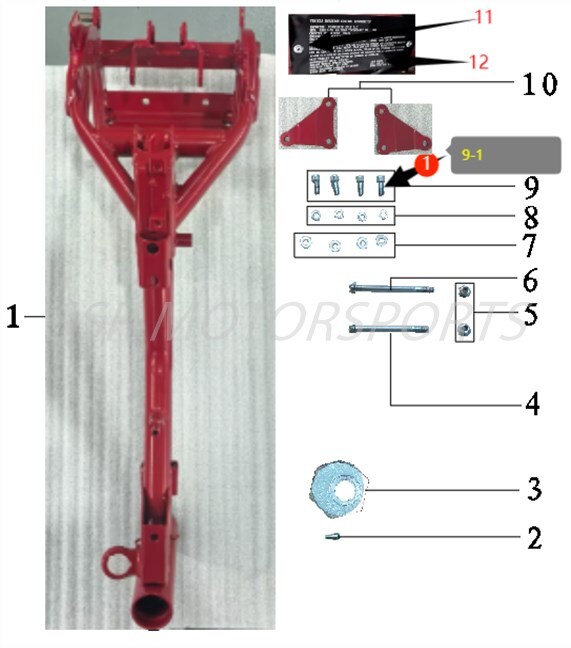

2026 SSR SR125R - Frame Parts Diagram
Factory source: the combined 2025-2026 SSR SR125R catalog. This page presents the shared factory listing for 2026.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00656-11-00 | FRAME RED *OVERSIZE/WEIGHT*+ ADD | $231.00 | 1 |
| 2 | A00002-19-01 | FLANGE BOLT M6X16+ ADD | $2.00 | 1 |
| 3 | A00635-05-00 | BRAKE PEDAL STOPPER 6.5XH6.5+10.5XH6.5+ ADD | $3.50 | 1 |
| 4 | A00044-19-01 | FLANGE BOLT M8X105+ ADD | $2.60 | 1 |
| 5 | A00001-22-04 | FLANGE LOCKNUT M8+ ADD | $2.00 | 2 |
| 6 | A00407-19-01 | FLANGE BOLT M8X120+ ADD | $3.50 | 1 |
| 7 | A00013-21-01 | WASHER 8X16X1.5+ ADD | $2.00 | 4 |
| 8 | A00001-21-02 | LOCK WASHER 8X13X2+ ADD | $2.00 | 4 |
| 9 | A00015-19-01 | FLANGE BOLT M8X20 S12+ ADD | $2.00 | 3 |
| 9-1 | A00249-19-02 | ALLEN BOLT M8X25+ ADD | $2.00 | 1 |
| 10 | A00644-11-00 | UPPER ENGINE MOUNTING BRACKETS RED+ ADD | $10.50 | 1 |
