Left Crankcase Cover & Electrical
All 2026 SSR SR125R schematics

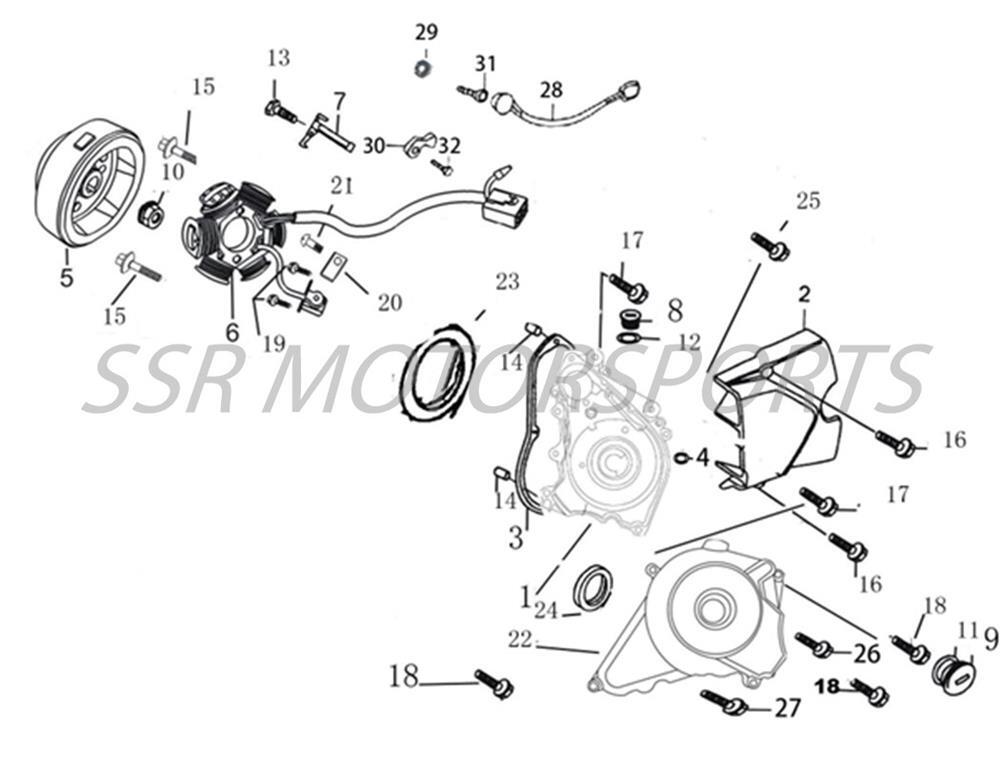

2026 SSR SR125R - Left Crankcase Cover & Electrical Parts Diagram
Factory source: the combined 2025-2026 SSR SR125R catalog. This page presents the shared factory listing for 2026.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A02504-09-00 | STARTER MOTOR BRACKET+ ADD | $31.50 | 1 |
| 2 | A03307-09-00 | COUNTERSHAFT SPROCKET COVER+ ADD | $29.80 | 1 |
| 3 | A00244-13-00 | STATOR COVER GASKET+ ADD | $10.50 | 1 |
| 4 | A00043-27-00 | O-RING 7.5X1.8+ ADD | $2.00 | 1 |
| 5 | A03308-09-00 | FLYWHEEL/STARTER CLUTCH+ ADD | $75.30 | 1 |
| 6 | A03309-09-00 | STATOR ASSY+ ADD | $101.50 | 1 |
| 7 | A02509-09-00 | STATOR WIRE CLAMP+ ADD | $2.60 | 1 |
| 8 | A03295-09-00 | TIMING PLUG MATTE+ ADD | $4.40 | 1 |
| 9 | A03296-09-00 | CRANK INSPECTION PLUG MATTE+ ADD | $15.80 | 1 |
| 10 | A00004-22-08 | SPECIAL NUT M10X1.25 WIDE FLANGE+ ADD | $2.00 | 1 |
| 11 | A00055-27-00 | O-RING 27.4X2.4+ ADD | $2.00 | 1 |
| 12 | A00056-27-00 | O-RING 13.8X2.5+ ADD | $2.60 | 1 |
| 13 | A00025-19-01 | FLANGE BOLT M6X14+ ADD | $2.00 | 1 |
| 14 | A00003-23-00 | DOWEL PIN M8X12+ ADD | $2.00 | 3 |
| 15 | A00420-19-08 | CASE FLANGE BOLT M6X22+ ADD | $2.00 | 2 |
| 16 | A00422-19-08 | CASE FLANGE BOLT M6X28+ ADD | $2.00 | 2 |
| 17 | A00064-19-01 | FLANGE BOLT M6X32+ ADD | $2.00 | 3 |
| 18 | A00425-19-08 | CASE FLANGE BOLT M6X35+ ADD | $2.00 | 1 |
| 19 | A00065-19-01 | HEX BOLT M5X12+ ADD | $2.00 | 2 |
| 20 | A00033-24-03 | WIRE CLAMP+ ADD | $2.00 | 1 |
| 21 | A00121-19-01 | BOLT M5X6+ ADD | $2.00 | 2 |
| 22 | A03310-09-00 | STATOR COVER+ ADD | $56.00 | 1 |
| 23 | A00010-27-00 | O-RING 107X2+ ADD | $8.80 | 1 |
| 24 | A00059-26-00 | OIL SEAL 30X42X4.5+ ADD | $4.40 | 1 |
| 25 | A00437-19-08 | CASE FLANGE BOLT M6X105+ ADD | $2.50 | 1 |
| 26 | A00421-19-08 | CASE FLANGE BOLT M6X25+ ADD | $2.00 | 1 |
| 27 | A00428-19-08 | CASE FLANGE BOLT M6X50+ ADD | $2.00 | 1 |
| 28 | A02920-09-00 | RUBBER PLUG+ ADD | $4.40 | 1 |
| 29 | A00073-21-01 | WASHER 6X17X2+ ADD | $2.00 | 1 |
| 31 | A00453-19-03 | HEX BOLT M6X16+ ADD | $4.40 | 1 |
| 32 | A00445-19-08 | CASE FLANGE BOLT M6X12+ ADD | $2.00 | 1 |
