Rear Brake Pedal, Side Stand And Footpegs
All 2026 SSR SR125R schematics

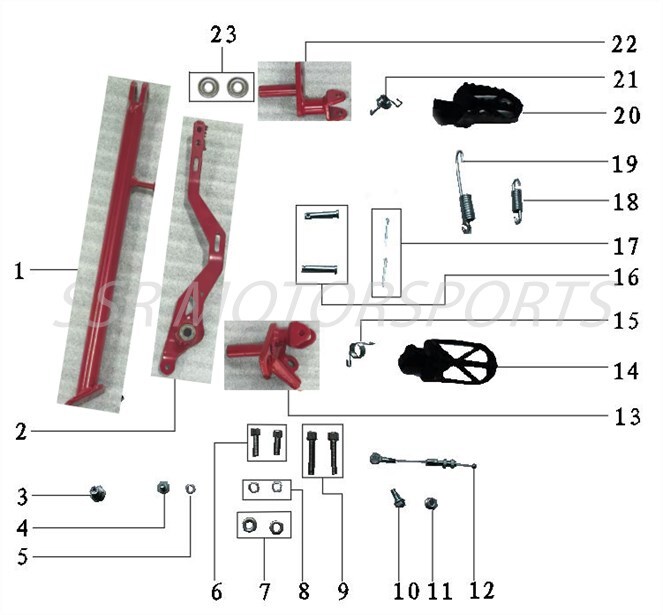

2026 SSR SR125R - Rear Brake Pedal, Side Stand And Footpegs Parts Diagram
Factory source: the combined 2025-2026 SSR SR125R catalog. This page presents the shared factory listing for 2026.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00660-11-00 | SIDE STAND L=280+ ADD | $26.30 | 1 |
| 2 | A00636-05-00 | REAR BRAKE PEDAL RED+ ADD | $31.50 | 1 |
| 3 | A00001-19-31 | FLANGE STEP BOLT M10X22+ ADD | $2.50 | 1 |
| 4 | A00008-19-03 | FLANGE BOLT M6X12+ ADD | $2.00 | 1 |
| 5 | A00002-21-02 | LOCK WASHER M6+ ADD | $2.00 | 1 |
| 6 | A00015-19-01 | FLANGE BOLT M8X20 S12+ ADD | $2.00 | 2 |
| 7 | A00013-21-01 | WASHER 8X16X1.5+ ADD | $2.00 | 2 |
| 8 | A00001-21-02 | LOCK WASHER 8X13X2+ ADD | $2.00 | 2 |
| 9 | A00014-19-01 | FLANGE BOLT M8X40+ ADD | $2.50 | 2 |
| 10 | A00002-19-01 | FLANGE BOLT M6X16+ ADD | $2.00 | 1 |
| 11 | A00005-22-04 | FLANGE LOCKNUT M6+ ADD | $2.00 | 1 |
| 12 | A00772-04-00 | REAR BRAKE PEDAL CABLE L=115 M6X25+ ADD | $8.00 | 2 |
| 13 | A00658-11-00 | LEFT FOOTPEG BRACKET/SIDE STAND MOUNT RED+ ADD | $12.30 | 1 |
| 14 | A00629-05-00 | LEFT FOOTPEG+ ADD | $21.00 | 1 |
| 15 | A00630-05-00 | RIGHT FOOTPEG SPRING+ ADD | $2.00 | 1 |
| 16 | A00620-05-00 | FOOTPEG PIVOT PIN+ ADD | $2.00 | 2 |
| 17 | A00019-28-01 | COTTER PIN 2.5X24+ ADD | $2.00 | 2 |
| 18 | A00633-05-00 | REAR BRAKE PEDAL RETURN SPRING+ ADD | $2.50 | 1 |
| 19 | A00634-05-00 | SIDE STAND SPRING L=110+ ADD | $2.60 | 1 |
| 20 | A00631-05-00 | RIGHT FOOTPEG+ ADD | $21.00 | 1 |
| 21 | A00632-05-00 | LEFT FOOTPEG SPRING+ ADD | $2.00 | 1 |
| 22 | A00659-11-00 | RIGHT FOOTPEG BRACKET RED+ ADD | $12.30 | 1 |
| 23 | A00098-28-00 | BRAKE PEDAL BEARING 6900Z+ ADD | $5.30 | 2 |
