Cylinder Head And Cylinder
All 2026 SSR SR140RB schematics

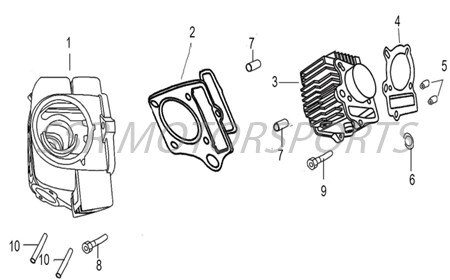

2026 SSR SR140RB - Cylinder Head And Cylinder Parts Diagram
Factory source: the combined 2025-2026 SSR SR140RB catalog. This page presents the shared factory listing for 2026.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A03321-09-00 | CYLINDER HEAD ASSY W/O VALVES+ ADD | $103.30 | 1 |
| 2 | A00161-13-00 | CYLINDER HEAD GASKET+ ADD | $10.50 | 1 |
| 3 | A03320-09-00 | CYLINDER+ ADD | $103.00 | 1 |
| 4 | A00160-13-00 | CYLINDER BASE GASKET+ ADD | $12.30 | 1 |
| 5 | A00003-23-00 | DOWEL PIN M8X12+ ADD | $2.00 | 2 |
| 6 | A00009-27-00 | O-RING 11.5X2.5+ ADD | $2.00 | 1 |
| 7 | A00001-23-00 | DOWEL PIN M8X14+ ADD | $2.00 | 2 |
| 8 | A00002-19-03 | BOLT M6X23 - HEX / PHILLIPS+ ADD | $2.00 | 1 |
| 9 | A01769-09-00 | OIL PIPE BOLT M8x25+ ADD | $2.00 | 1 |
| 10 | A00019-19-04 | STUD M6x38+ ADD | $2.00 | 2 |
