All 2026 SSR SR140RB schematics

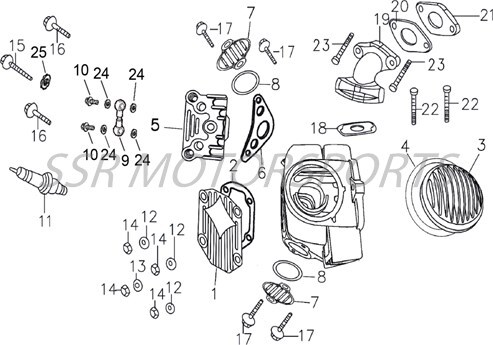

2026 SSR SR140RB - Cylinder Head Covers Parts Diagram

Factory source: the combined 2025-2026 SSR SR140RB catalog. This page presents the shared factory listing for 2026.

Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.

FIND & SELECT YOUR PARTS

PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.

NO.	PART #	DESCRIPTION	MSRP	QTY
1	A01648-09-00	CYLINDER HEAD COVER+ ADD	$24.50	1
2	A00162-13-00	CYLINDER HEAD COVER GASKET+ ADD	$8.80	1
3	A01649-09-00	TIMING COVER+ ADD	$22.80	1
4	A00163-13-00	LEFT CYLINDER HEAD COVER GASKET+ ADD	$8.80	1
5	A01650-09-00	RIGHT CYLINDER HEAD COVER+ ADD	$22.80	1
6	A00164-13-00	RIGHT CYLINDER HEAD COVER GASKET+ ADD	$8.80	1
7	A01651-09-00	TAPPET COVER MATTE W/ FINS+ ADD	$8.80	2
8	A00094-27-00	O-RING+ ADD	$4.40	2
11	CR7HSA	SPARK PLUG CR7HSA+ ADD	$9.60	1
12	A00008-21-01	WASHER M7+ ADD	$2.00	3
13	A00269-21-01	COPPER WASHER M7+ ADD	$2.00	1
14	A00003-22-36	FLANGE CAP NUT M6+ ADD	$2.00	4
15	A00439-19-07	TIMING COVER FLANGE BOLT M6x110+ ADD	$2.60	1
16	A00418-19-08	CASE FLANGE BOLT M6X16+ ADD	$2.00	2
17	A00003-19-05	FLANGE BOLT M6X16+ ADD	$2.00	4
18	A00292-14-00	INTAKE MANIFOLD GASKET+ ADD	$4.40	1
19	A00293-14-00	INTAKE MANIFOLD YX-02+ ADD	$42.00	1
20	A00274-13-00	CARBURETOR GASKET+ ADD	$4.40	1
21	A00377-14-00	INTAKE INSULATOR Φ28 5MM+ ADD	$8.80	1
22	A00419-19-08	CASE FLANGE BOLT M6X20+ ADD	$2.00	2
23	A00424-19-08	CASE FLANGE BOLT M6X32+ ADD	$2.00	2
24	A00549-04-00	SEALING WASHER M10+ ADD	$2.00	4
25	A01177-09-00	ALUMINUM WASHER M6+ ADD	$2.00	1
