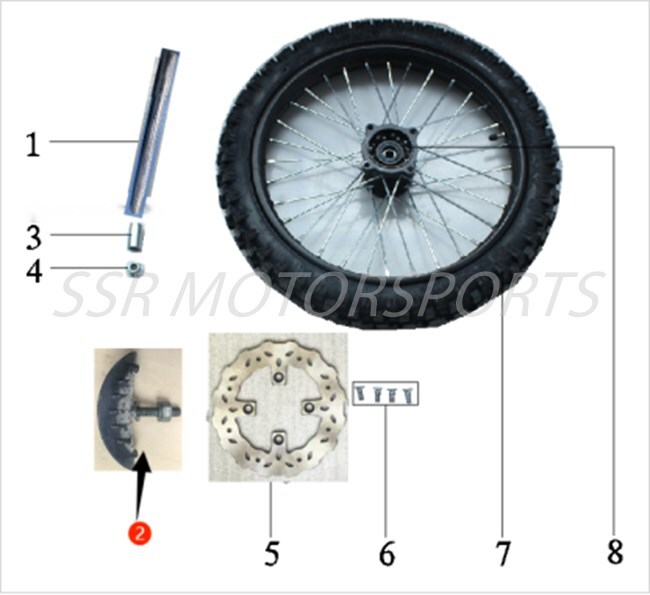

2026 SSR SR140RB - Front Wheel Parts Diagram
Factory source: the combined 2025-2026 SSR SR140RB catalog. This page presents the shared factory listing for 2026.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00671-18-00 | FRONT WHEEL AXLE M15X223XM14X1.5+ ADD | $35.00 | 1 |
| 2 | A00065-18-00 | RIM LOCK 1.6+ ADD | $28.00 | 1 |
| 3 | A00227-18-00 | WHEEL SPACER M15X22XL28+ ADD | $4.40 | 1 |
| 4 | A00003-22-01 | FLANGE LOCKNUT M14x1.5+ ADD | $2.60 | 1 |
| 5 | A00770-04-00 | FRONT BRAKE ROTOR 220MM+ ADD | $31.50 | 1 |
| 6 | A00034-19-10 | ROTOR BOLT M8X16 ALLEN+ ADD | $2.00 | 4 |
| 7 | A00537-18-00 | FRONT TIRE W/ TUBE + RIM STRIP 70/100-17+ ADD | $64.80 | 1 |
| 8 | A00541-18-00 | FRONT WHEEL ASSY 1.6-17 BLACK+ ADD | $109.00 | 1 |
| 9 | A00017-28-00 | BEARING 6202-RS+ ADD | $8.00 | 2 |
| 11 | A00543-18-00 | FRONT INNER SPOKE (187) W/ NIPPLE+ ADD | $2.50 | 16 |
| 12 | A00544-18-00 | FRONT OUTER SPOKE (191) W/ NIPPLE+ ADD | $2.50 | 16 |
