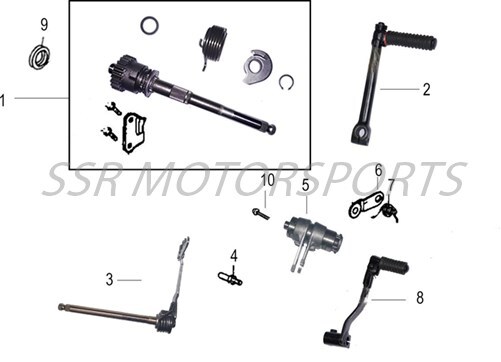

2026 SSR SR140RB - Gearshift Drum & Kickstarter Parts Diagram
Factory source: the combined 2025-2026 SSR SR140RB catalog. This page presents the shared factory listing for 2026.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01747-09-00 | KICKSTART SHAFT ASSEMBLY+ ADD | $117.30 | 1 |
| 2 | A00661-05-00 | KICKSTARTER LEVER BLACK+ ADD | $29.80 | 1 |
| 3 | A01132-09-00 | GEARSHIFT SHAFT ASSY+ ADD | $75.30 | 1 |
| 4 | A01140-09-00 | RETURN SPRING STOPPER+ ADD | $2.60 | 1 |
| 5 | A01141-09-00 | GEARSHIFT DRUM ASSY+ ADD | $68.30 | 1 |
| 6 | A01145-09-00 | GEAR SETTING ARM NOTE: BOLT ATTACHED+ ADD | $8.80 | 1 |
| 7 | A01147-09-00 | TORSION SETTING PLATE SPRING+ ADD | $2.00 | 1 |
| 8 | A00660-05-00 | SHIFTER LEVER BLACK+ ADD | $31.50 | 1 |
| 9 | A00005-26-00 | OIL SEAL 13.7X24X5+ ADD | $6.10 | 1 |
| 10 | A00453-19-03 | HEX BOLT M6X16+ ADD | $4.40 | 1 |
