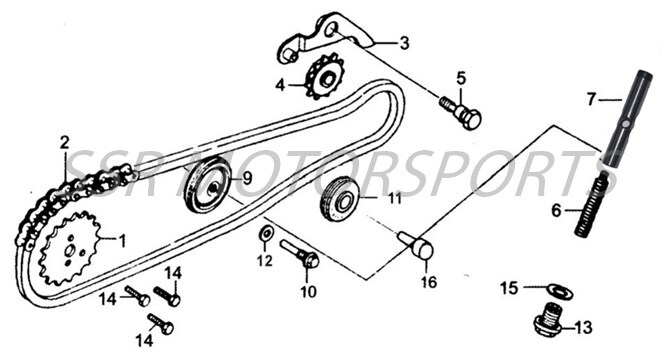

2026 SSR SR140RB - Timing Chain Parts Diagram
Factory source: the combined 2025-2026 SSR SR140RB catalog. This page presents the shared factory listing for 2026.
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A01668-09-00 | CAMSHAFT SPROCKET 32T+ ADD | $24.50 | 1 |
| 2 | A01669-09-00 | TIMING CHAIN+ ADD | $45.50 | 1 |
| 3 | A02444-09-00 | CAM CHAIN TENSIONER ARM+ ADD | $8.80 | 1 |
| 4 | A01257-09-00 | CAM CHAIN TENSIONER ROLLER RUBBER+ ADD | $10.50 | 1 |
| 5 | A01672-09-00 | CHAIN TENSIONER ARM BOLT+ ADD | $2.50 | 1 |
| 6 | A01673-09-00 | TENSIONING ROD SPRING+ ADD | $2.60 | 1 |
| 7 | A01674-09-00 | TENSIONING ROD+ ADD | $8.00 | 1 |
| 8 | A01675-09-00 | TENSIONING ROD HEAD+ ADD | $2.60 | 1 |
| 9 | A01676-09-00 | CHAIN ROLLER+ ADD | $15.80 | 1 |
| 10 | A01677-09-00 | CHAIN ROLLER BOLT+ ADD | $2.00 | 1 |
| 11 | A03342-09-00 | GUIDE SPROCKET NO TEETH+ ADD | $10.50 | 1 |
| 12 | A00094-21-01 | WASHER M8X14X2+ ADD | $2.00 | 1 |
| 13 | A01680-09-00 | TENSIONER BOLT+ ADD | $2.60 | 1 |
| 14 | A00025-19-03 | HEX BOLT M5X12+ ADD | $2.00 | 3 |
| 15 | A00019-21-01 | WASHER M14+ ADD | $2.00 | 1 |
