2026 SSR XD150 Air Box

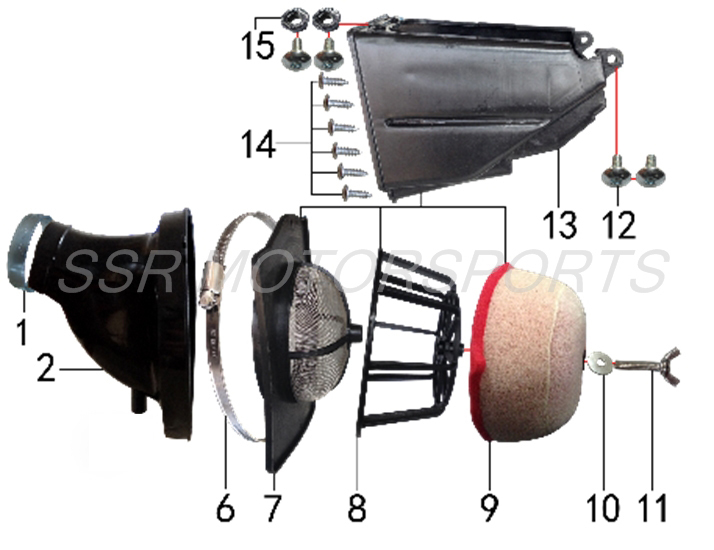

2026 SSR XD150 - Air Box Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00004-24-02 | HOSE CLAMP 38-57+ ADD | $6.10 | 1 |
| 2 | A00303-14-00 | AIRBOX BOOT+ ADD | $56.00 | 1 |
| 6 | A00307-14-00 | HOSE CLAMP 140-160 9mm+ ADD | $8.80 | 1 |
| 7 | A00308-14-00 | AIRBOX BACKFIRE SCREEN+ ADD | $28.00 | 1 |
| 8 | A00309-14-00 | AIR FILTER CAGE+ ADD | $15.80 | 1 |
| 9 | A00310-14-00 | AIR FILTER ELEMENT+ ADD | $45.50 | 1 |
| 10 | A00004-21-01 | WASHER M8+ ADD | $2.00 | 1 |
| 11 | A00454-19-W3 | WING BOLT M6X40+ ADD | $2.50 | 1 |
| 12 | A00123-19-02 | BUTTON HEAD ALLEN BOLT M6X16+ ADD | $2.00 | 4 |
| 13 | A00311-14-00 | AIRBOX HOUSING+ ADD | $31.50 | 1 |
| 14 | A00009-20-03 | ST SCREW ST4.8X16+ ADD | $2.00 | 6 |
| 15 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 2 |
