2026 SSR XD150 Control Components

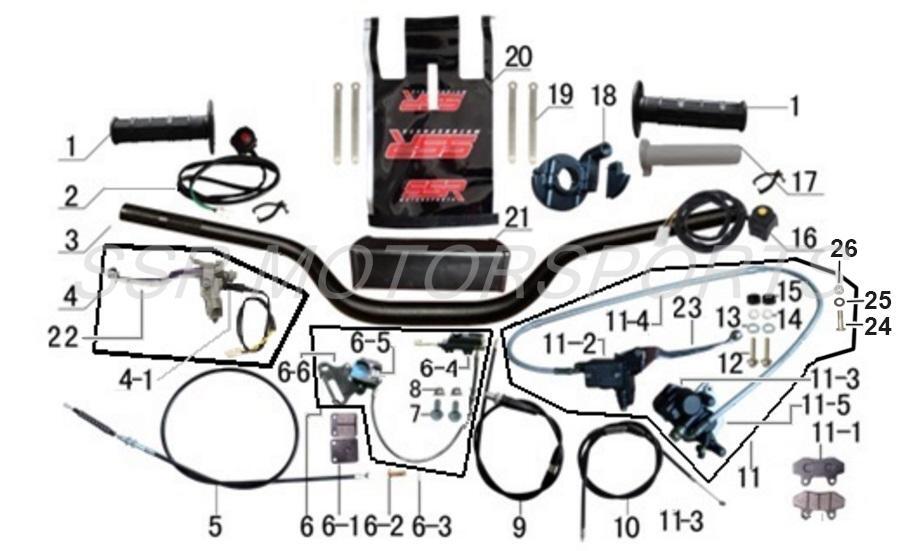

2026 SSR XD150 - Control Components Parts Diagram
Click a blue Part # to see its listed verified catalog applications. Click the Description to add or remove the part from your Parts Request.
PART #: Click to view verified catalog applications.
DESCRIPTION: Click to add/remove from your Parts Request.
DESCRIPTION: Click to add/remove from your Parts Request.
| NO. | PART # | DESCRIPTION | MSRP | QTY |
|---|---|---|---|---|
| 1 | A00280-05-00 | HANDLEBAR GRIP SET+ ADD | $14.00 | 1 |
| 2 | A00408-08-00 | KILL SWITCH+ ADD | $12.30 | 1 |
| 3 | A00281-05-00 | HANDLEBAR 770-780 28.5X22.2+ ADD | $38.50 | 1 |
| 4 | A00653-05-00 | CLUTCH PERCH ASSY+ ADD | $49.00 | 1 |
| 4-1 | A00539-05-00 | CLUTCH LOCKOUT SWITCH CLIP TYPE+ ADD | $12.30 | 1 |
| 5 | A00654-05-00 | CLUTCH CABLE CLUTCH CABLE+ ADD | $19.30 | 1 |
| 6 | A00416-04-00 | REAR BRAKE ASSY NOT INCLUDED - #7, #8+ ADD | $129.50 | 1 |
| 6-1 | A00553-04-00 | REAR BRAKE PAD SET+ ADD | $15.80 | 1 |
| 6-2 | A00417-04-00 | REAR BRAKE PIN+ ADD | $2.00 | 1 |
| 6-3 | A00007-25-01 | COTTER PIN 1.5X16+ ADD | $2.00 | 1 |
| 6-4 | A00594-04-00 | REAR BRAKE MASTER CYLINDER ASSY+ ADD | $45.50 | 1 |
| 6-5 | A00595-04-00 | REAR BRAKE CALIPER+ ADD | $68.30 | 1 |
| 6-6 | A00678-04-00 | REAR BRAKE HOSE+ ADD | $19.30 | 1 |
| 7 | A00003-19-01 | FLANGE BOLT M6X25+ ADD | $2.00 | 2 |
| 8 | A00093-22-03 | FLANGE NUT M6 (SILVER -OR- BLACK)+ ADD | $2.00 | 2 |
| 9 | A00297-05-00 | THROTTLE CABLE 95/12.2+ ADD | $21.00 | 1 |
| 10 | A00445-05-00 | CHOKE CABLE 895 77+ ADD | $19.30 | 1 |
| 11 | A00419-04-00 | FRONT BRAKE ASSY NOT INCLUDED - #12, 13, 14, 15, 24, 25, 26+ ADD | $136.50 | 1 |
| 11-1 | A00016-04-00 | FRONT BRAKE PAD SET+ ADD | $15.80 | 1 |
| 11-2 | A00597-04-00 | FRONT BRAKE MASTER CYLINDER ASSY+ ADD | $45.50 | 1 |
| 11-3 | A00598-04-00 | FRONT BRAKE CALIPER+ ADD | $68.30 | 1 |
| 11-4 | A00599-04-00 | FRONT BRAKE HOSE+ ADD | $19.30 | 1 |
| 11-5 | A00600-04-00 | FRONT BRAKE CALIPER BRACKET+ ADD | $4.40 | 1 |
| 12 | A00009-19-03 | FLANGE BOLT M6×45+ ADD | $2.00 | 2 |
| 14 | A00104-21-01 | WASHER 6X18X1.5+ ADD | $2.00 | 2 |
| 15 | A00616-05-00 | SPACER 6X12X12+ ADD | $2.60 | 2 |
| 16 | A00409-08-00 | START SWITCH+ ADD | $19.30 | 1 |
| 17 | A00284-05-00 | THROTTLE TUBE+ ADD | $8.80 | 1 |
| 18 | A00285-05-00 | THROTTLE HOUSING+ ADD | $19.30 | 1 |
| 19 | A00009-24-01 | RUBBER CABLE CLAMP 75MM+ ADD | $2.60 | 4 |
| 20 | A00658-05-00 | HANDLEBAR PAD COVER+ ADD | $15.80 | 1 |
| 21 | A00659-05-00 | HANDLEBAR PAD+ ADD | $26.30 | 1 |
| 22 | A00655-05-00 | CLUTCH LEVER+ ADD | $15.80 | 1 |
| 23 | A00429-05-00 | FRONT BRAKE LEVER+ ADD | $21.00 | 1 |
| 23A | A00507-04-00 | FOLDING FRONT BRAKE LEVER+ ADD | $56.00 | 1 |
| 24 | A00399-19-00 | CLUTCH LEVER PIVOT BOLT+ ADD | $2.60 | 1 |
| 25 | A00002-21-02 | LOCK WASHER M6+ ADD | $2.00 | 1 |
| 26 | A00001-22-01 | NUT M6+ ADD | $2.00 | 1 |
| 27 | A00421-19-X8 | CASE FLANGE BOLT M6X25 BLK+ ADD | $2.00 | 2 |
| 28 | A00585-05-00 | CHOKE LEVER+ ADD | $2.60 | 1 |
| 29 | A00586-05-00 | CLUTCH CABLE ADJUSTER W/ NUT+ ADD | $2.60 | 1 |
| 30 | A00587-05-00 | SPACER+ ADD | $2.60 | 1 |
